Item number:
5337
Description

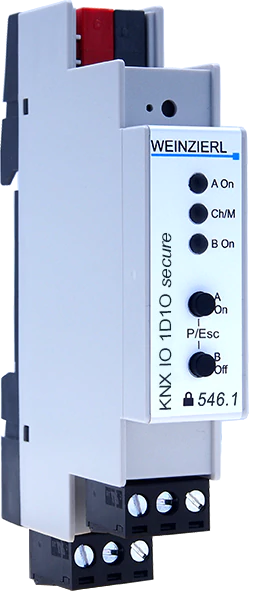

TheKNX IO 546.1secure(1D1O)is a compact combineddimming/switching actuator with 1 dimming outputfor active electronic ballasts with a0/1-10V interface and 1 bi-stable relay output. The dimming actuator can be used for several active electronic ballasts e.g. for LED panels or stripes. Every configuration allows controlling the channel by switching, rel. dimming and dimming value. Several comfort functions are integrated as well, including scenes, slumber fading, staircase light and sequencer. The device optionally supportsKNX Security.The switching actuator provides the function for universal outputs including scene control, timer, staircase lighting and heating valves (PWM for thermoelectric valve drives). Two push buttons and three LEDs allow a local operation and a visualization of the device state. In addition to the output channels the device includes 16 independent functions for logic or timer control.
Mechanical data
- Housing: plastic
- DIN rail mounted device, width: 1 modules (18 mm)
- Weigth: approx 60 g
Controls and indicators
- 2 buttons and 3 LEDs, multicolour
- KNX programming button with LED
Connectors
- Connector for KNX Bus (red / black)
- Pluggable screw connector (3 poles) for dimming
- Pluggable screw connector (3 poles) for switching
Output channel (dimming actuator)
- Dimming voltage: 0…10 V⎓ / 1…10 V⎓
- Max. current: 50 mA
Output channel (switching actuator)
- Relay type: 230V~/10A, bi-stable
- Depending on load type (capacitive or inductive) the switching power can be reduced significantly
The documents
Additionally
We are official suppliers of KNX equipment.
Found cheaper?
On order
Our managers will be sure to contact you with the terms of your order
Special price for automation specialists.
To get a discount, order the product online or email info@knxpoint.com
To get a discount, order the product online or email info@knxpoint.com
Characteristics
Model ean
—
4260262773371
