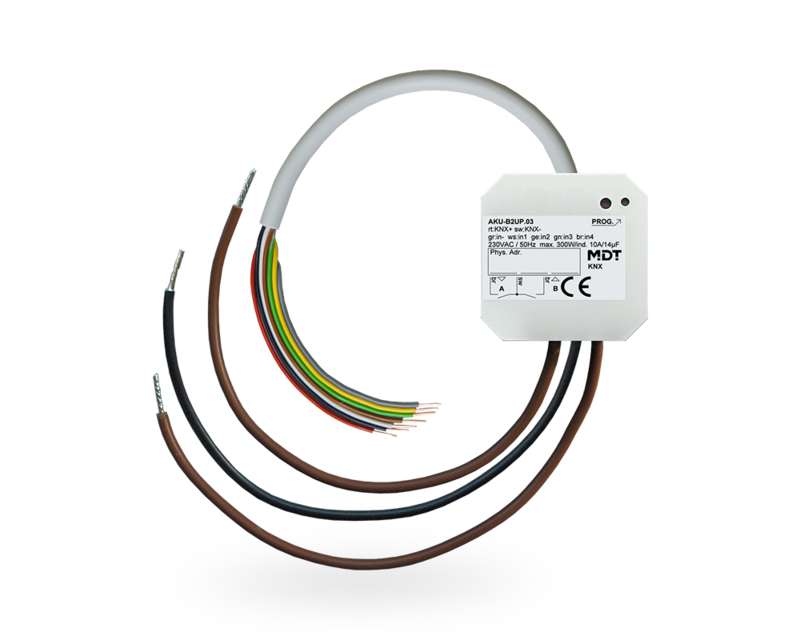

MDT AKU-B2UP.03 Universal Actuators AKU flush mounted

The flush-mounted version of the new Universal Actuator AKU can be used in a variety of ways: As a switch actuator with various functions (2-fold), as a shutter actuator (1-fold) with automatic shading function or as a heating actuator. The versatile application offers full functionality in all three areas. Existing conventional shutter push-buttons or window contacts can be connected directly to the floating binary inputs and evaluated (AKU-B2UP.03 only).
Can be used as a Switch Actuator 2-fold or Shutter Actuator 1-fold Heating control with PWM 0-100 % Automatic sun shading / slat adjustment with sun position calculation Practical ventilation function (window open / tilt) Time functions (switch-on / switch-off delay, staircase light function) Status response (active / passive) for each channel Logical linking of binary data, 8 scenes per channel Central switching functions and blocking for forced operation Operation mode blind / shutter adjustable Travel-, pause at change of direction, and step time adjustable 1 Bit automatic function and sun protection 8 Bit positioning for shutter and blinds Adjustable behavior in case of bus voltage failure or return To connect push-buttons or window / auxiliary contacts Integrated evaluation of the windows contacts Adjustable transmission behavior of the up / down objects (To the internal contacts or actuators on the KNX bus) Operation of blinds and shutters, 1 and 2 button operation Binary inputs usable as universal interface Dimensions (W x H x D): 41 mm x 41 mm x 22 mm Quick application download (long frame support with ETS 5 or higher) Production in Germany, certified according to ISO 9001 3 years warranty
