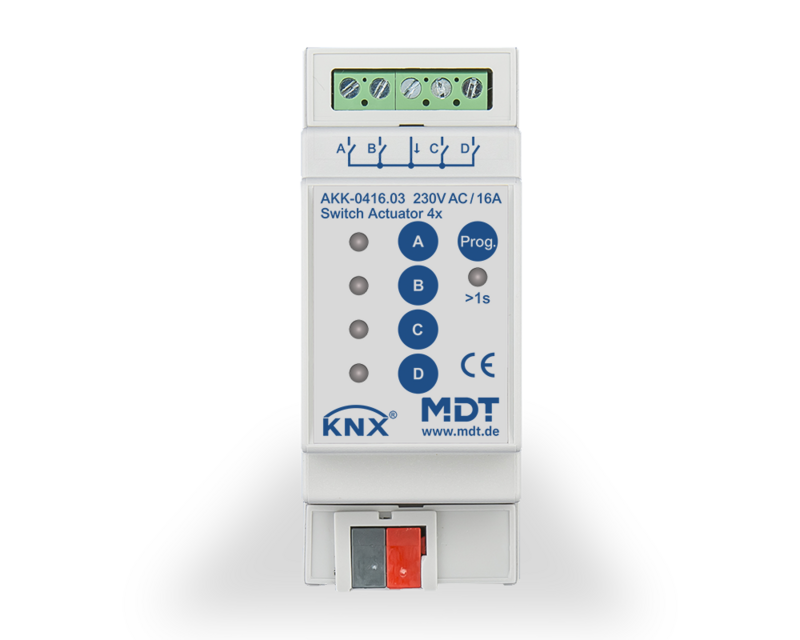

MDT AKK-0416.03 Switch Actuators AKK compact

The compact MDT Switch Actuator AKK for small to medium loads offers a wide range of functions. The AKK switch actuator with four channels, for example, only requires two switch units in the distribution system; whereas comparable switch actuators usually require four. The maximum switching capacity is 16 A and 70 µF C-load.
Function extension Lockable manual operation and LED indicator for each channel NO and NC contact operation Status response with manual operation Time functions (switch-on / switch-off delay) Extensive staircase light and impulse functions Status response (active / passive) for each channel Logical linking of binary data Extendend scene functions for each channel Central switching functions and blocking for forced operation Adjustable behavior in case of bus voltage failure / return 4 mm² / 2 x 2.5 mm² screw terminals. Separate supply phases Common supply phase (AKK-02 / 0416.03) Separate L-connections (AKK-08 / 16 / 2416.03) Power supply via KNX bus Quick application download (long frame support with ETS 5 or higher) Production in Germany, certified according to ISO 9001 3 year warranty
