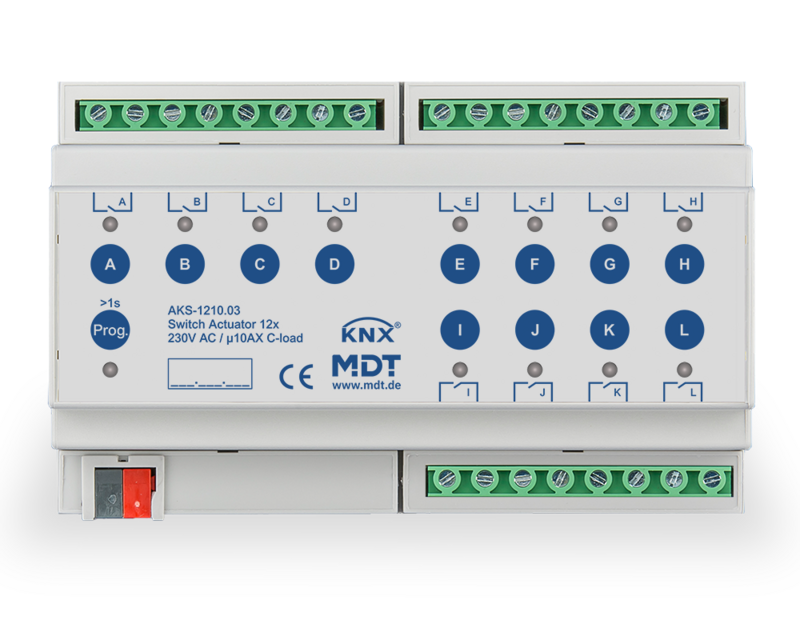

MDT AKS-1210.03 Switch Actuator AKS Standard 10 A

The standard version of the MDT Switch Actuator AKS 10 A comes with a large range of functions for small loads and offers more channels with a smaller space requirement. This saves costs per channel and for the sub-distribution. The actuator is equipped with bistable relays for currents up to 10 A and high C-loads of up to 140 µF. Each channel can be switched directly on the actuator via a button.
Space saving design Comprehensive application Lockable manual operation and LED indicator for each channel NO and NC contact operation Status response with manual operation Time functions (switch-on / switch-off delay, staircase light function) Extended logic and scene functions for each channel Extended status functions (inverted, cyclic, with lock) Threshold switch (Byte / 2 Byte / 2 Byte float) Hour meter for switching Priority / forced operation with automatic release time 4 mm² / 2 x 2.5 mm² screw terminals. Separate supply phases Quick application download (long frame support with ETS 5 or higher) Power supply via KNX bus Production in Germany, certified according to ISO 9001 3 year warranty
