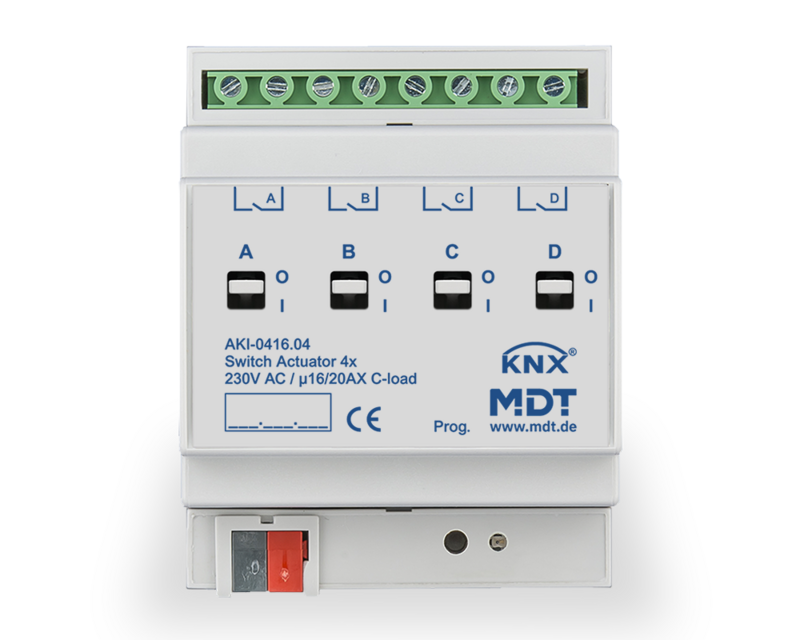

MDT AKI-0416.04 Switch Actuators AKI industry

The industrial version of the MDT Switch Actuator AKI for large to very large loads is used where particularly high inrush currents are to be expected. The actuator is equipped with bistable relays for currents up to 16/20 A and a C-load up to 200 µF. Thanks to mechanical manual operation, they are particularly suitable for sensitive areas. The channels can also be switched without bus voltage and the switching status is visible at all times.
Comprehensive function extension Mechanical manual operation for direct actuation of the relay contact, status visible NO and NC contact operation Status response by manual operation Time functions (switch-on / switch-off delay) Extensive staircase light and impulse functions Extended logic and scene functions for each channel Extended status functions (inverted, cyclic, with lock) Threshold switch (Byte / 2 Byte / 2 Byte float) Hour meter for switching Priority / forced operation with automatic release time 4 mm² / 2 x 2.5 mm² screw terminals. Separate supply phases Power supply via KNX bus Quick application download (long frame support with ETS 5 or higher) Production in Germany, certified according to ISO 9001 3 year warranty
