Item number:
RF-AKK1UP.01
Description

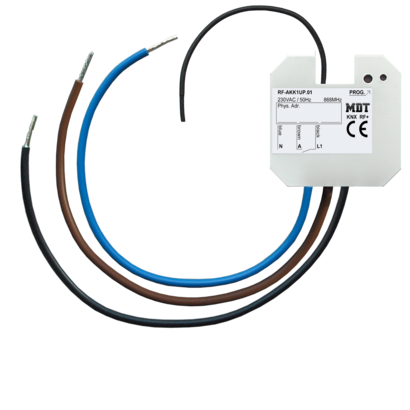

The MDT KNX RF+ Switch Actuator receives KNX / EIB telegrams ans switchs up to 2 indipendent electrical loads.Each output uses a monostable relay.
KNX RF+ protocol in system mode Commissioning with ETS 5 or higher For operation inside the EU, 868 MHz NO and NC contact operation Time functions (switch-on / switch-off delay, staircase light function) Status response (active / passive) for each channel Logical linking of binary data 8 scenes per channel Central switching functions and block functions Flush mounted in an installation box Connection via MDT KNX RF+ Line Coupler To upgrade your installation without installing KNX bus cables Power supply 230 V AC Dimensions (W x H x D): 41 mm x 41 mm x 22 mm Integrated bus coupling unit Production in Germany, certified according to ISO 9001 3 year warranty
KNX RF+ protocol in system mode Commissioning with ETS 5 or higher For operation inside the EU, 868 MHz NO and NC contact operation Time functions (switch-on / switch-off delay, staircase light function) Status response (active / passive) for each channel Logical linking of binary data 8 scenes per channel Central switching functions and block functions Flush mounted in an installation box Connection via MDT KNX RF+ Line Coupler To upgrade your installation without installing KNX bus cables Power supply 230 V AC Dimensions (W x H x D): 41 mm x 41 mm x 22 mm Integrated bus coupling unit Production in Germany, certified according to ISO 9001 3 year warranty
