Item number:
AKK-01UP.03
Description

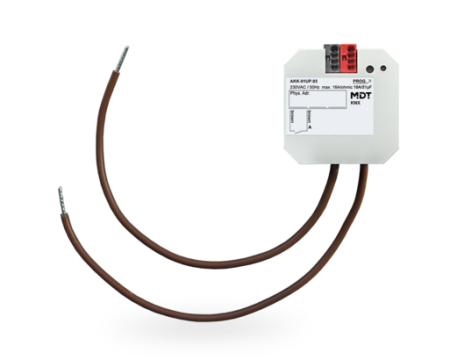

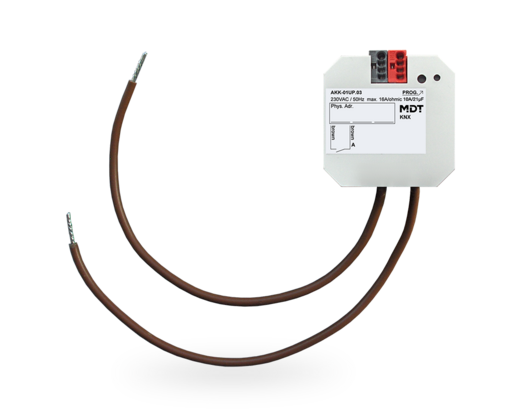

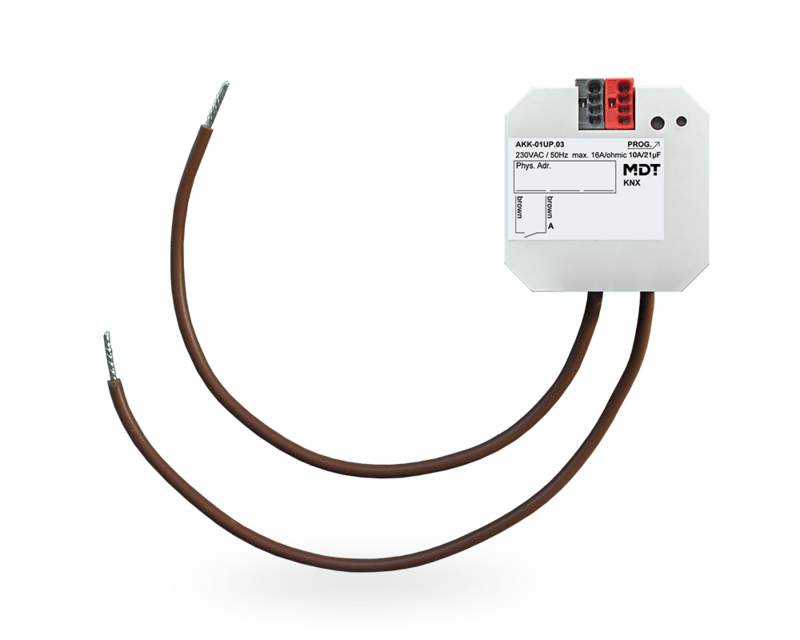

The flush-mounted version of the MDT Switch Actuator AKK with a wide range of functions is suitable for small to medium loads. This is the perfect actuator for decentralised switching of individual consumers directly from the switch box.
Function extension NO and NC contact operation Time functions (switch-on / switch-off delay) Extensive staircase light and impulse functions Status response (active / passive) for each channel Logical linking of binary data Extendend scene functions for each channel Central switching functions and blocking for forced operation Adjustable behavior in case of bus voltage failure (AKK-01UP.02 only) Adjustable behavior in case of bus voltage return Flush mounted in an installation box Dimensions (W x H x D): 41 mm x 41 mm x 22 mm Quick application download (long frame support with ETS 5 or higher) Production in Germany, certified according to ISO 9001 3 year warranty
Function extension NO and NC contact operation Time functions (switch-on / switch-off delay) Extensive staircase light and impulse functions Status response (active / passive) for each channel Logical linking of binary data Extendend scene functions for each channel Central switching functions and blocking for forced operation Adjustable behavior in case of bus voltage failure (AKK-01UP.02 only) Adjustable behavior in case of bus voltage return Flush mounted in an installation box Dimensions (W x H x D): 41 mm x 41 mm x 22 mm Quick application download (long frame support with ETS 5 or higher) Production in Germany, certified according to ISO 9001 3 year warranty
Additionally
We are official suppliers of KNX equipment.
