Item number:
AMS-0416.03
Description

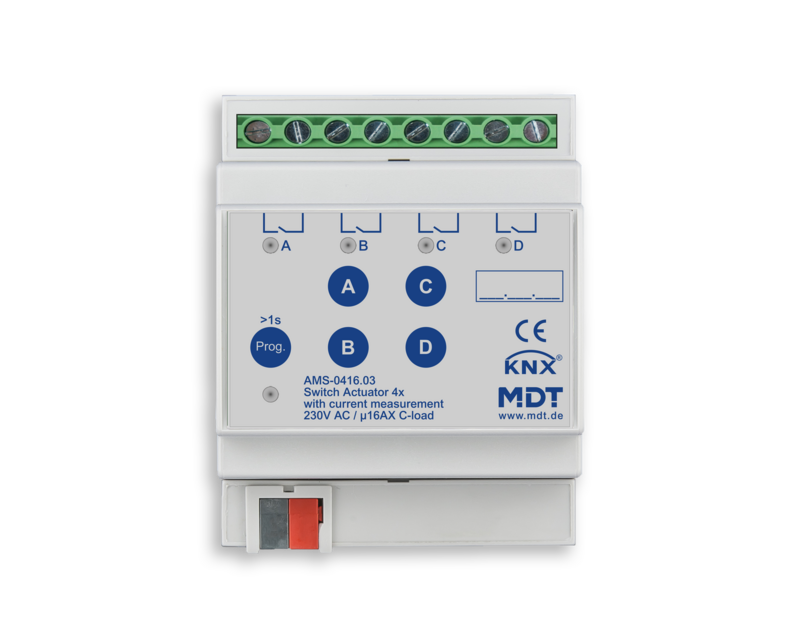

The standard version of the MDT Switch Actuator AMS 16 A with current measurement reliably measures the currents per channel with up to 16 amperes. This makes it possible, for example, to monitor load overshoot and load undershoot. The current measurement per channel can be taken into account in a total current measurement.
Push Button for manual operation and LED indicator for each channel Time functions (switch-on / switch-off delay, staircase light function) Logical linking of binary data, 8 scenes per channel Operating hours meter Extended status functions (inverted, cyclic, when locked) Priority / forced operation with automatic release time Adjustable behaviour on bus voltage failure / -return All L-connections separated, 4 mm² / 2 x 2,5 mm² connection terminals 3 years warranty Made in Germany
Push Button for manual operation and LED indicator for each channel Time functions (switch-on / switch-off delay, staircase light function) Logical linking of binary data, 8 scenes per channel Operating hours meter Extended status functions (inverted, cyclic, when locked) Priority / forced operation with automatic release time Adjustable behaviour on bus voltage failure / -return All L-connections separated, 4 mm² / 2 x 2,5 mm² connection terminals 3 years warranty Made in Germany
The documents
AMS-xx16-03_MDT_DS_EN
298,9 KB
