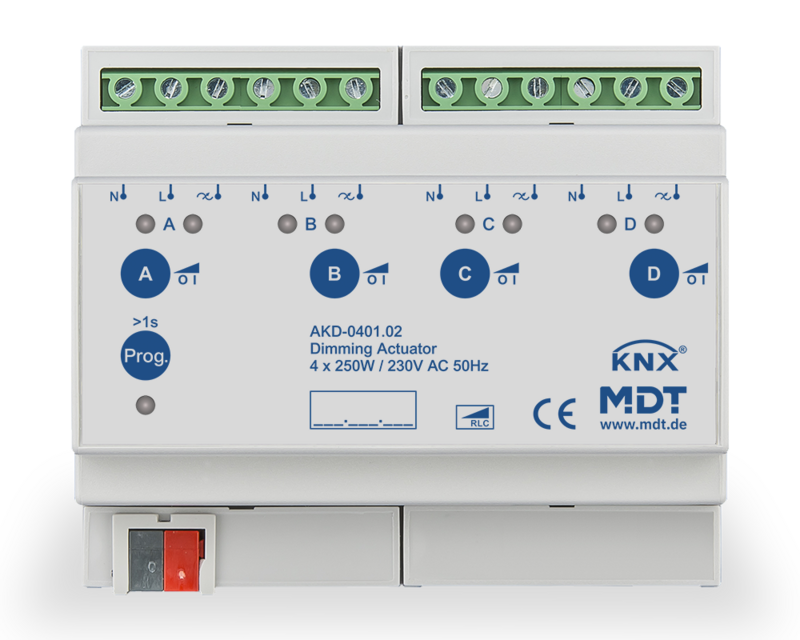

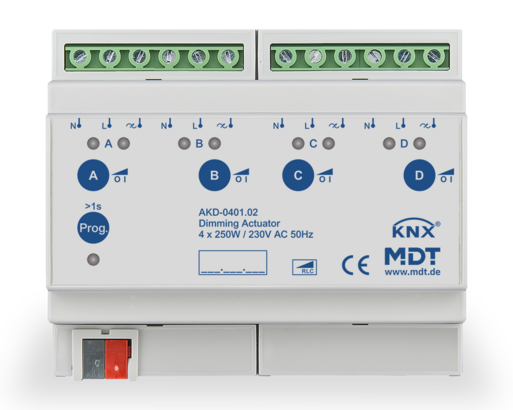

MDT AKD-0401.02 Dimming Actuators AKD

The MDT Dimming Actuator AKD is optimised for dimmable 230 V LED lamps. Extensive setting parameters offer, for example, the option of dimming the light depending on the time of day or (depending on the location) according to the astronomical sunrise and sunset. Separate parameters for each channel and load type ensure the best possible dimming behaviour of the connected lamps.
Comprehensive application Optimized for dimmable LED lights > 2 W For HV-halogen lights and LNV-halogen lights with transformer / EVG Operation in leading-edge or trailing-edge selectable Active power measurement Integrated diagnostic function with plain text message Overload- / short circuit- and temperature protection with message Time functions (switch-on / switch-off delay, staircase light function) Automatic time dependent dimming Softstart, global and individual dimming speed Day / Night function Parallel operation of 2 channels with 500 W total power output Push Button for manual operation and indicator for each channel Separate L- / N connections for each channel (different phases possible L1, L2, L3) Production in Germany, certified according to ISO 9001 3 year warranty
