Item number:
90222
Description

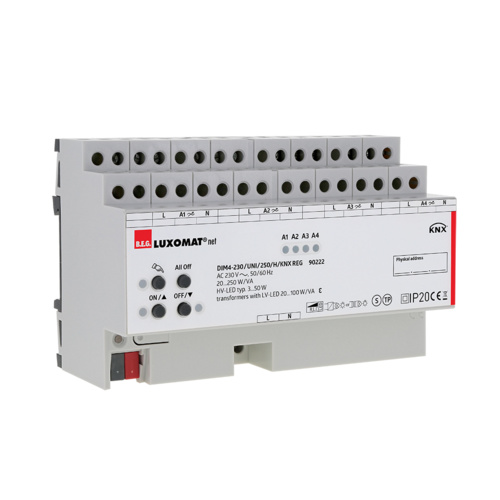

Switching and dimming of incandescent lamps, HV halogen lamps, Tronic transformers with halogen lamps, dimmable inductive transformers with halogen or LED lamps, HV LED and compact fluorescent lamps
4 x 250 W, HV LED lamps typ. 4 x 7 ... 50 W 1 x 950 W
Automatic or manual selection of the dimming principle suitable for the load
Open-circuit, short-circuit and over temperature protected
Short-circuit message
Outputs manually operable
Feedback of the switching status and the dimming value
adjustable switch-on and dimming behavior
Time functions: Switch-on, switch-off delay, staircase light switch with pre-warning function
light scene operation
Locking of individual outputs by hand or bus
Status display of the outputs via LED
- Voltage:
- 230 V AC 50 / 60 Hz
additionally via KNX BUS - Dimensions:

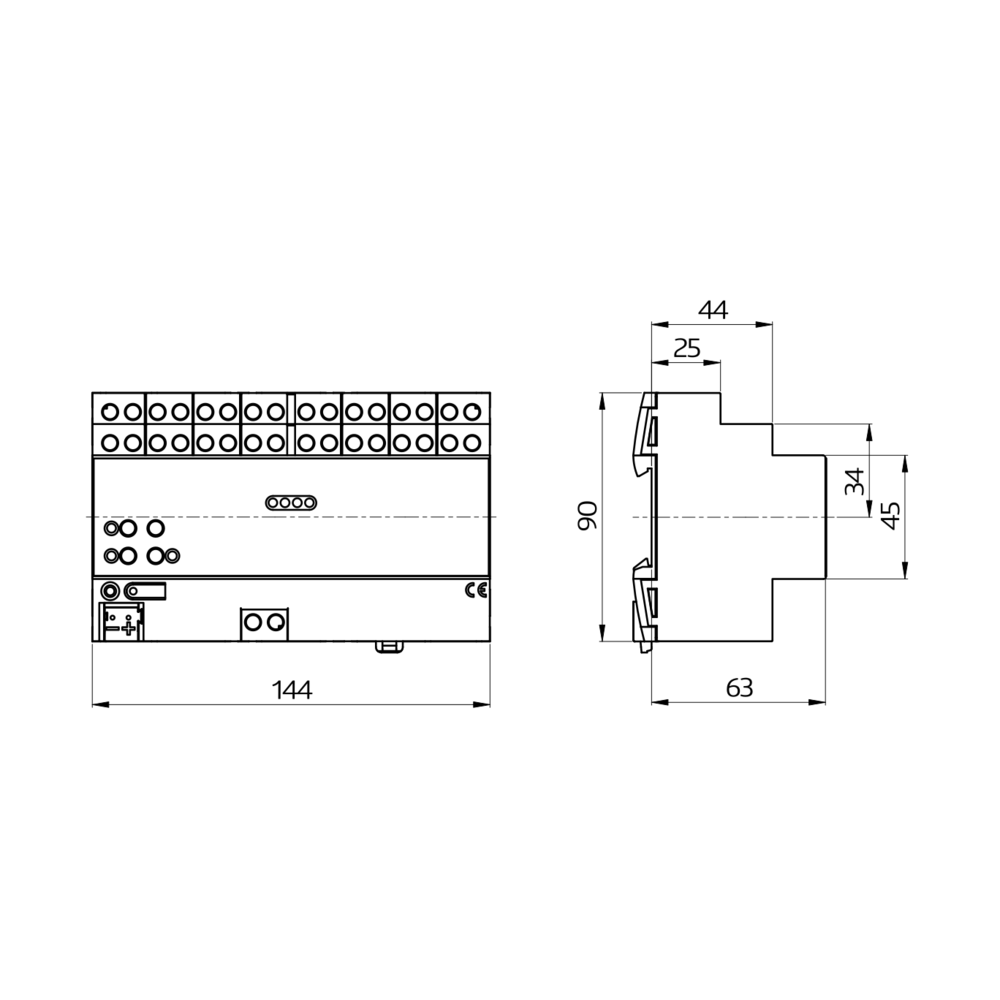

- (8 TE) 90 x 144 x 64 mm
- typ. power input:
- 5 mA typical
20 mA max. - Power consumption:
- 0.15 W
- Degree / class of protection:
- IP20 / Class II
- Ambient temperature:
- -5 °C to +45 °C
- Housing:
- Polycarbonate / POM
- Display elements:
- 1 x Red LED: Programming LED, push button
4 x Red LED: Channel status - Manual operation:
- 4 x push button
3 x LED, red - KNX TP 256:
- Yes
- Connections and wires:
- 1 x Bus line: EIB/KNX bus terminal (black/red)
0.5 ... 4.0 mm² rigid
0.5 ... 2.5 mm² fine-wired (with or without ferrule) - Switching power:
- Resistive loads 20 … 250 W
LED-Lamps typ. 3 … 50 W
Fluorescent lamps typ. 3 … 50 W
Inductive load 20 … 250 VA
For details please see Manual - Type of contact:
- MOSFET
- Outputs:
- 4 dim outputs
Characteristics
Color
Grey
Model ean
4007529902224
Voltage
230 V AC 50 / 60 Hz
additionally via KNX BUS
Dimensions
(8 TE) 90 x 144 x 64 mm
Power consumption
0.15 W
Degree / class of protection
IP20 / Class II
Ambient temperature
-5 °C to +45 °C
Housing
Polycarbonate / POM
Connections and wires
1 x Bus line: EIB/KNX bus terminal (black/red)
0.5 ... 4.0 mm² rigid
0.5 ... 2.5 mm² fine-wired (with or without ferrule)
Switching power
Resistive loads 20 … 250 W
LED-Lamps typ. 3 … 50 W
Fluorescent lamps typ. 3 … 50 W
Inductive load 20 … 250 VA
For details please see Manual
Type of contact
MOSFET
Additionally
