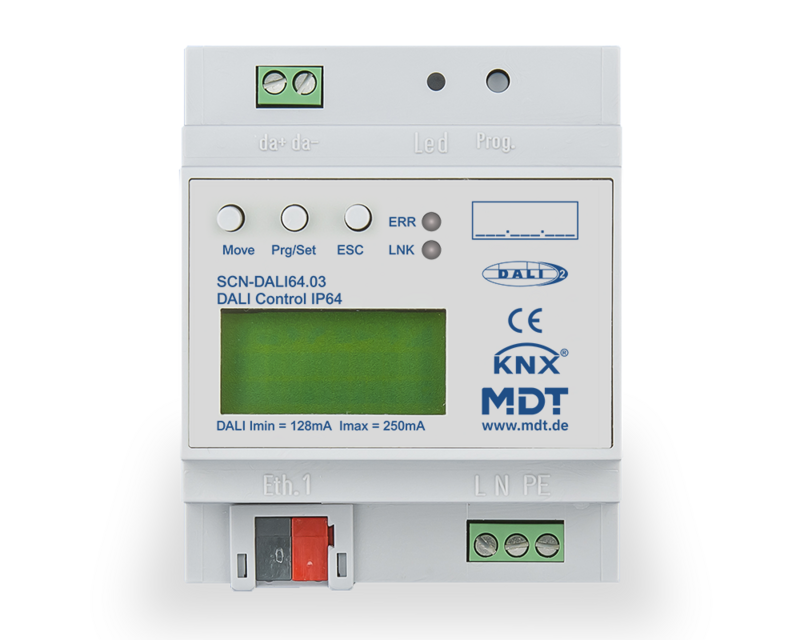

MDT SCN-DALI64.03 DALI Control IP64 Gateway

The MDT DALI Control IP 64 Gateway forms the interface between the KNX and the DALI bus. Using the integrated web interface, DALI commissioning and electronic ballast replacement is also possible without using the ETS. For example, the gateway enables the existing DALI lights to be switched and dimmed using the MDT glass or plastic push-buttons. The gateway supports DALI and DALI-2 compliant lights/ballasts, from single colour to Tunable White, to RGB(W).
Individual control of up to 64 ECG / 16 DALI groups Supports DALI and DALI-2 standard, as well as DALI DT6 / DT8 ECG Innovative HSV color control, RGB, RGBW and XY color according to Dali DT8 standard (16 DALI groups) Tunable White, color temperature control (16 DALI groups) Operation modes incl. normal operation, continuous operation, night operation, stairwell operation and panic operation Test mode for systems with emergency lights that were supplied through central batteries Support of single battery emergency lights DT-1 Integrated color control module for time-dependent control Manual operation for all 16 groups 16 scenes with individual dimming times Energy saving function for switching off the ECGs in the 16 DALI groups (via additional KNX switch actuator) Simple group attribution directly on the device Dali commissioning via web browser or directly on the device display Fault detection of lamp faults and faulty ECGs Quick exchange of ECG Free DCA app for commissioning the DALI bus system Commissioning with ETS5 or higher Production in Germany certified according to ISO 9001 3 year warranty
