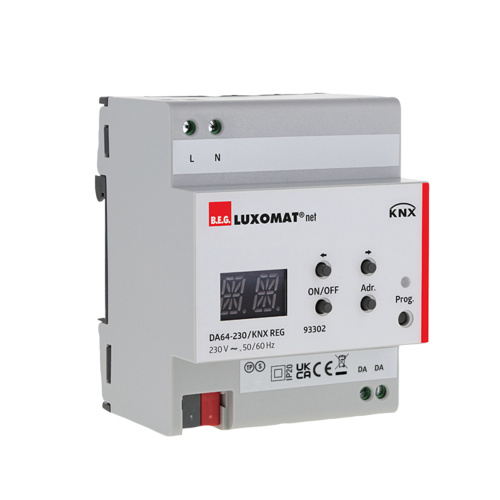

Item number:
93302
Description
The gateway connects the KNX BUS with the DALI BUS (DALI BUS for controlling the illumination)
Each gateway is for controlling and dimming up to 64 electronic ballasts in 16 groups
Scenes module for controlling individual electronic ballasts
RGB and TW (DT8) support
Support of B.E.G. DALI-LINK multisensors, push-button modules, push-buttons and DALI relay modules
Commissioning via DCA
Broadcast command via integrated operating buttons
Support for DALI emergency luminaires
- Voltage:
- 230 V AC -15/+10% 50 / 60 Hz

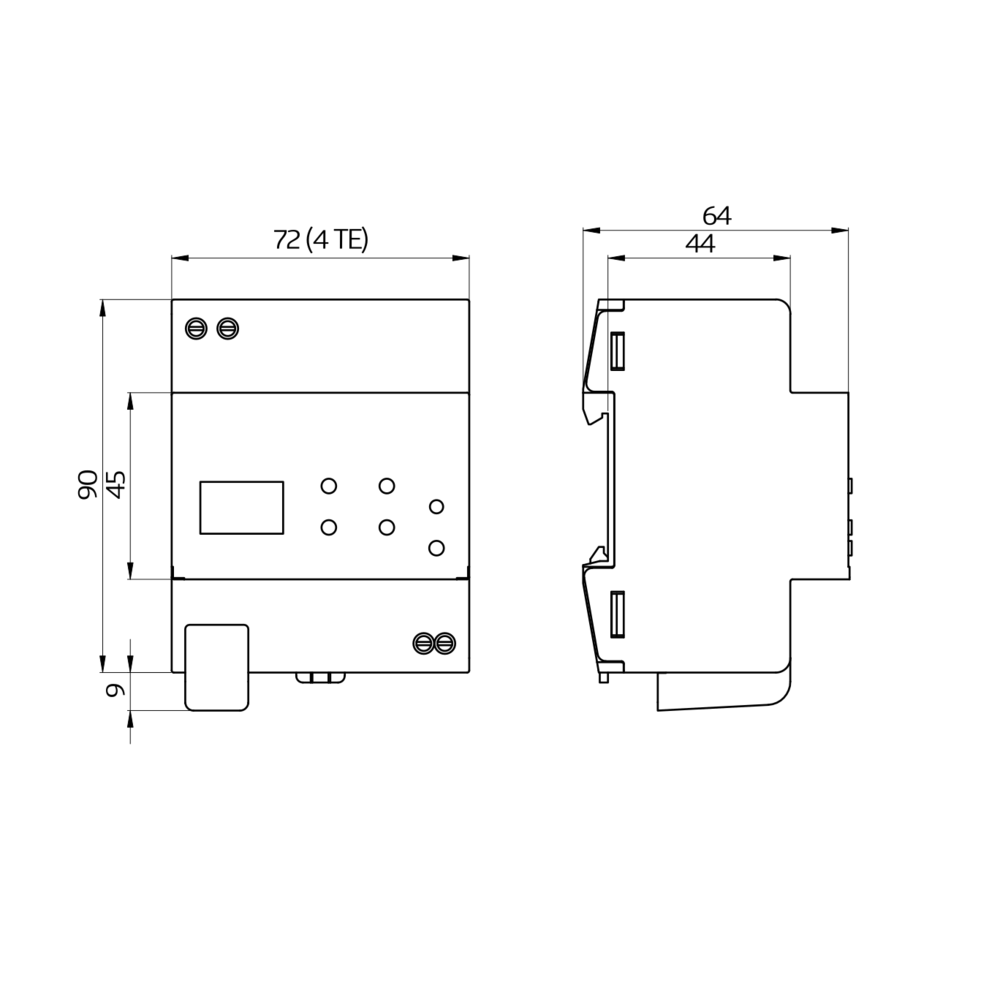

- Dimensions:
- (4 TE) 90 x 72 x 64 mm
- typ. power input:
- 5.5 mA (KNX, typical)
- Output voltage:
- 16 V DC (DALI, typical)
- Power consumption:
- 0.9 – 6 W
- Degree / class of protection:
- IP20 / Class I
- Ambient temperature:
- -5 °C to +45 °C
- Housing:
- PA66
- KNX TP 256:
- Yes
- Nominal current:
- 160 mA
- Nominal current (max.):
- 210 mA
Characteristics
Color
White
Model ean
4007529933020
Voltage
230 V AC -15/+10% 50 / 60 Hz
Dimensions
(4 TE) 90 x 72 x 64 mm
Power consumption
0.9 – 6 W
Degree / class of protection
IP20 / Class I
Ambient temperature
-5 °C to +45 °C
Housing
PA66
