Item number:
5230
Description

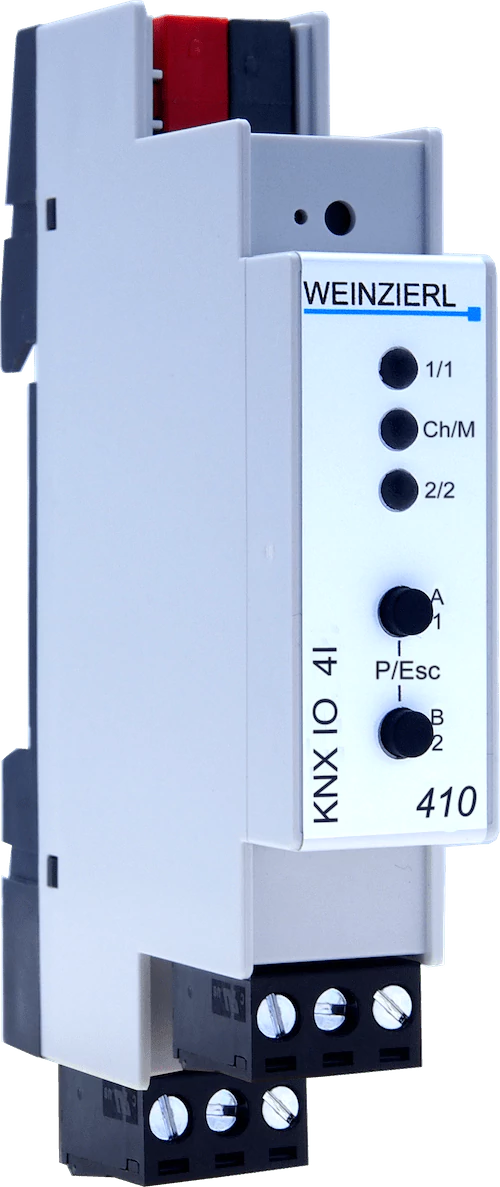

TheKNX IO 410 (4I)is acompact binary input with 4 channelsto control lights, shutter etc. The inputs can be connected to conventional switches with an external voltage of 12 to 230 V. Using as impulse counter is possible as well. Two push buttons and three LEDs allow a local operation and a visualization of the device state.In addition to the input channels the device includes 16 independent functions for logic or timer control.
Mechanical data
- Housing: plastic
- DIN rail mounted device, width: 1 modules (18 mm)
- Weigth: approx. 50 g
User Interface
- two keys for on device settings
- three multi color LEDs
- KNX programming LED and KNX programming key
KNX
- Device Model System B
- Compatible with ETS 4.2 (or higher)
Connectors
- Connector for KNX Bus (red / black)
- Pluggable screw connector (3 poles) for binary input channel 1 and 2
- Pluggable screw connector (3 poles) for binary input channel 3 and 4
Input channels (Binary in)
- Voltage: 12 .. 230 V=~
- Current: < 1 mA
The documents
Additionally
We are official suppliers of KNX equipment.
Found cheaper?
On order
Our managers will be sure to contact you with the terms of your order
Special price for automation specialists.
To get a discount, order the product online or email info@knxpoint.com
To get a discount, order the product online or email info@knxpoint.com
Characteristics
Model ean
—
4260262772305
