Item number:
93335
Description

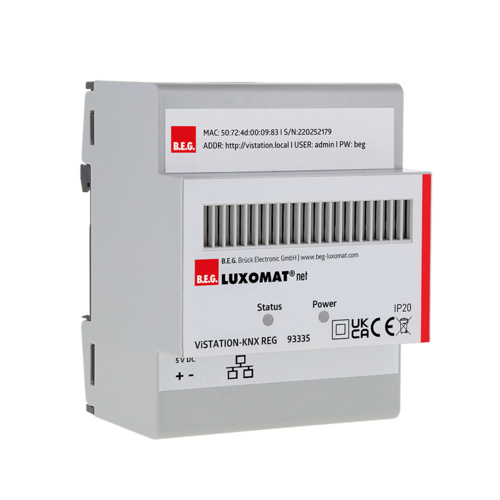

Virtual Interface Station - The visualisation and remote server for KNX systems
Plastic housing, 4 widths units (DIN-rail, top hat)
1 Ethernet/LAN connection
2D floor plan and/or tile view with customer-specific data
Central visualisation of light, occupancy and error data
Manual override of individual lighting zones possible
Manual override via scene function possible
User and rights management for individual control of specific rooms
Can be operated via compatible web browser on any user device (smartphone, tablet, PC)
Including separately enclosed 5VDC/2A power supply for DIN rail mounting (~18mm)
Administration access preconfigured for user administration
Weekly timer
Astro program, e.g. for sunrise or sunset events
- Voltage:
- 5 V DC

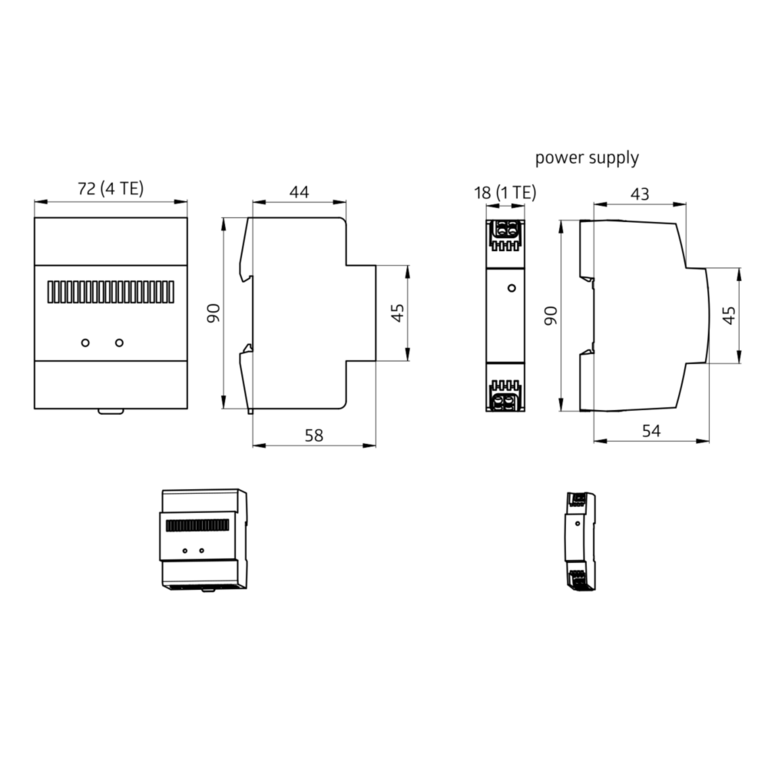

- Dimensions:
- (4 TE) 90 x 72 x 64 mm
- Power consumption:
- max. 5 W
- Degree / class of protection:
- IP20 / Class II
- Ambient temperature:
- 0 °C to +45 °C
- Housing:
- Polyamide, UV-resistant
Characteristics
Color
Grey
Model ean
4007529933358
Voltage
5 V DC
Dimensions
(4 TE) 90 x 72 x 64 mm
Power consumption
max. 5 W
Degree / class of protection
IP20 / Class II
Ambient temperature
0 °C to +45 °C
Housing
Polyamide, UV-resistant
