Item number:
90214
Description

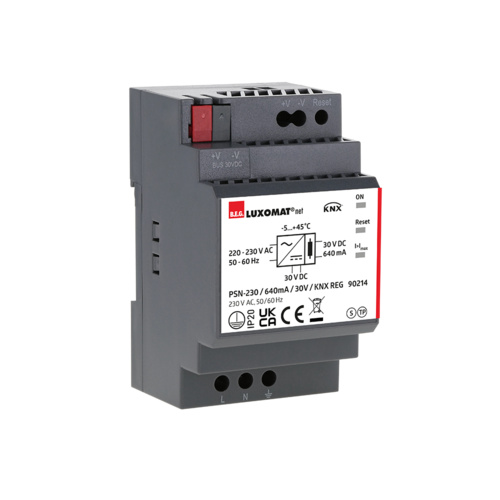

The power supply KNX PS has an integrated inductor for supplying the BUS with a constant, stabilised voltage
The device is designed for DIN-rail (top hat) assembly in high voltage current distributors
- Voltage:
- 200 – 240 V AC 50 / 60 Hz

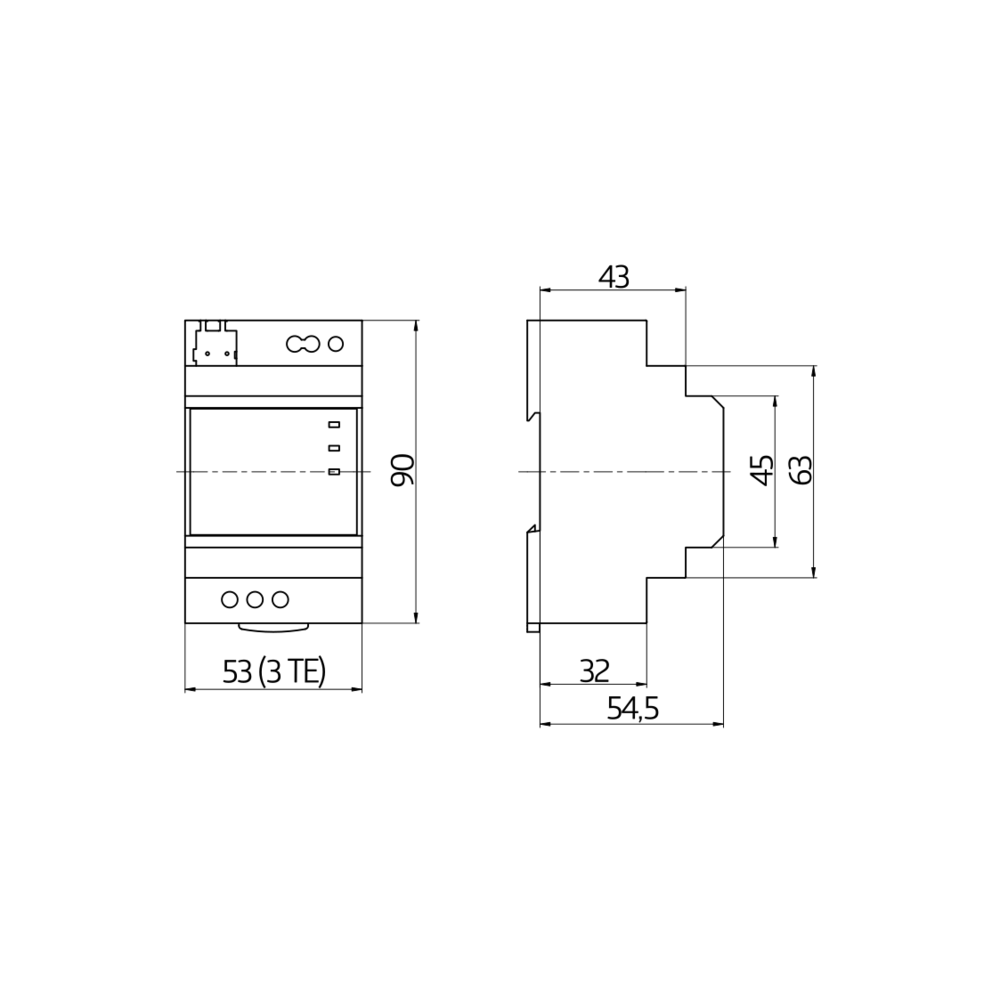

- Dimensions:
- (3 TE) 90 x 52.5 x 58 mm
- Output voltage:
- 30 V DC
- Degree / class of protection:
- IP20 / Class I
- Ambient temperature:
- -5 °C to +50 °C
- Housing:
- polycarbonate, UV-resistant (PC)
- Display elements:
- Yellow LED: overload
Green LED: in operation
Red LED: Reset
- Nominal current:
- 640 mA
- Nominal current (max.):
- 1300 mA
Characteristics
Color
Grey
Model ean
4007529902149
Voltage
200 – 240 V AC 50 / 60 Hz
Dimensions
(3 TE) 90 x 52.5 x 58 mm
Degree / class of protection
IP20 / Class I
Ambient temperature
-5 °C to +50 °C
Housing
polycarbonate, UV-resistant (PC)
