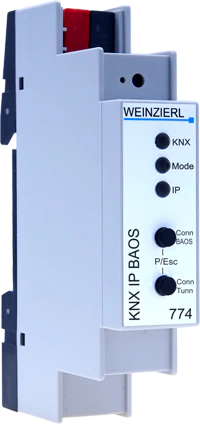

Weinzierl 5263 KNX IP BAOS 774

TheKNX IP BAOS 774is used asInterfacefor connecting to KNX both on telegram level (KNXnet/IP Tunneling) and on data point level (KNX Application Layer). Clients can directly access Group Objects via either a Binary Protocol (over TCP/IP or UDP/IP) or via JSON (Java Script Object Notation) Web Services. The device is configured with the ETS and supports up to1000 Group Objects. 10 simultaneous client connections are supported.BAOS is an acronym for “Bus Access and Object Server”. It is possible to connect to the KNX bus everywhere over LAN. Bus connection over the internet with KNX IP BAOS 774 is also possible. The device supports 5 simultaneous KNXnet/IP tunneling connections.The buttons are for diagnostic purposes. The LEDs indicate the operating status and communication errors on the bus. Power is supplied via the KNX bus.BAOS SDKFor quick and easy integration of BAOS services in your own projects there are two free SDKs available. First, the BAOS Binary SDK, a C++ implementation of the BAOS Binary Protocol. The following systems are supported:WindowsLinuxMac OS XiOSFor the integration of BAOS Services in a Web browser, we offer the BAOS Web Services SDK. This SDK is based on HTTP and Java script, the BAOS Services provides a simple JavaScript API.
