Item number:
5248
Description

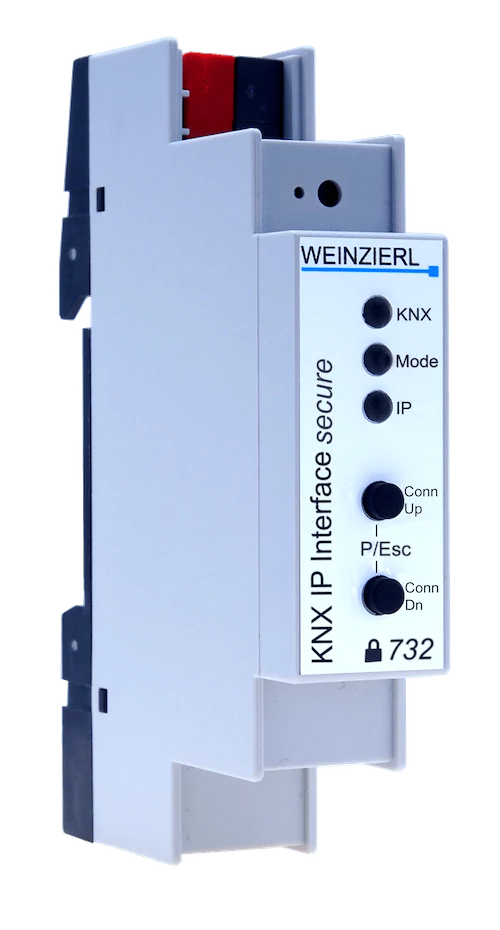

TheKNX IP Interface 732secureserves as asecure interfacebetween a LAN (IP, Ethernet) and KNX and can be used as a programming interface for the ETS®. As aKNX Secure Interface(tunneling), the device prevents unauthorized access to the system. The connection between PC and interface is encrypted. The security option can be activated or deactivated in the ETS.With theKNX IP Interface 732 secure, the KNX bus can be accessed from any point in the LAN. Encryption also enables secure programming over the Internet.The device is characterized by a compact design with a width of only 1 module width(18 mm)and is powered by the KNX bus.The buttons and LEDs on the device allow a local diagnosis of the current operating status and possible communication errors.
Mechanical Data
- Housing: plastic
- DIN rail mounted device
- Width: 1 module (18 mm)
Controls and indicators
- 2 buttons and 3 LEDs, multicolor
- KNX programming button with LED (RD)
Ethernet
- 100BaseT (100MBit/s)
- Supported internet protocols ARP, ICMP,
IGMP, UDP/IP, TCP/IP, DHCP and Auto IP
KNX
- Medium TP
- KNXnet / IP tunneling
- Long Frame
- KNX IP Security (AES-128)
- Tunneling V2, Core V2
- Up to 8 connections at the same time
Power supply
- From KNX Bus, approx. 20 mA
Connectors
- KNX Bus connector
- LAN RJ-45 socket
The documents
Additionally
We are official suppliers of KNX equipment.
Found cheaper?
On order
Our managers will be sure to contact you with the terms of your order
Special price for automation specialists.
To get a discount, order the product online or email info@knxpoint.com
To get a discount, order the product online or email info@knxpoint.com
Characteristics
Model ean
—
4260262772480
