Item number:
5419
Description

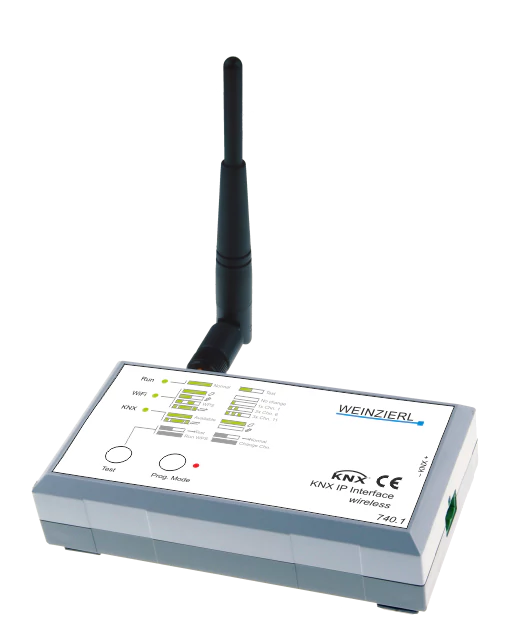

TheKNX IP Interface 740.1wirelessserves as awireless interfaceto the KNX bus based onWLAN. The device can be used as aprogramminginterfacefor the ETS® and is a wireless alternative to USB or wired IP interfaces. The bus access viaWIFIallows the installer to move freely in the building with his laptop to a large extent.TheKNX IP Interface 740.1 wirelesshas an integratedWIFIaccess point to which the laptop can connect. Alternatively, the device can be connected to an existingWIFIin client mode, the connection can be made viaWPS(WIFI Protected Setup). The device supports the security standardWPA2. Power is supplied via the KNX bus.
- Housing: Plastic (PS)
- Dimension: 125 x 67 x 31 mm without antenna
- Weight: appox. 150 g
Operating Controls
- KNX programming button with LED (red)
- 1 button and 3 LEDs (green)
Indicators
- Operating LED (green)
- Signal LED for WLAN (green)
- Signal LED for KNX (green)
- Learning / Programming LED (red)
WIFI
- IEEE 802.11b/g/n
- Security: WPA2 (PSK)
Power supply
- KNX Bus approx. 22 mA
Connectors
- Plugable screw connector
- SMA for antenna
