Item number:
5243
Description

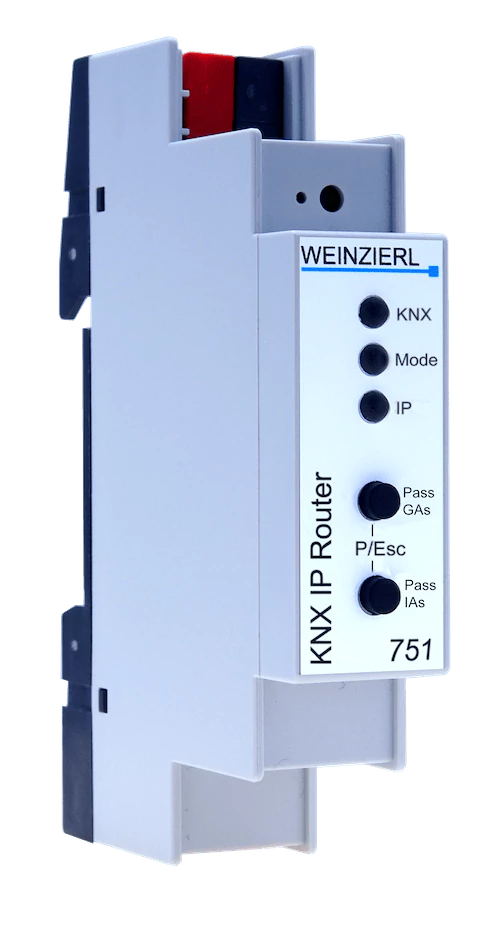

TheKNX IP Router 751with compact design has a width of only1 module (18 mm)and is powered by the KNX bus. The device forwards telegrams between different KNX TP lines via LAN (IP) as a fast backbone and is an alternative to KNX line coupler. TheKNX IP Router 751can also be used in the ETS® as aprogramming interface. TheKNX IP Router 751has a full-range filter table and a large telegram buffer. The buttons and LEDs on the device allow a local diagnosis including the operating status and communication errors.
Controls and indicators
- Housing: plastic
- DIN rail mounted device
- Width: 1 TE (18 mm)
Controls and indicators
- 2 buttons + KNX programming button
- 3 LEDs bicolor + KNX programming LED
Ethernet
- 10BaseT
- 5 KNXnet/IP Tunneling connections
KNX
- Medium IP/TP
- Filter table 8 kByte (64k group addresses)
- Long Frame
Power supply
- From KNX Bus, approx. 15 mA
Connectors
- KNX connector
- LAN RJ-45 socket
The documents
Additionally
We are official suppliers of KNX equipment.
Found cheaper?
On order
Our managers will be sure to contact you with the terms of your order
Special price for automation specialists.
To get a discount, order the product online or email info@knxpoint.com
To get a discount, order the product online or email info@knxpoint.com
Characteristics
Model ean
—
4260262772435
