Item number:
90403
Description
Enables the secure forwarding (routing) of telegrams between different lines via a LAN (IP, Ethernet) as a fast backbone.
As a secure router, the device enables the coupling of unsecured communication on a KNX TP line with a secure IP backbone
Has an extended filter table for main group 0 to 31 and can buffer up to 150 telegrams
The device also serves as a secure interface between IP (Ethernet) and KNX and can be used as a programming interface for the ETS
As KNX Secure Interface (tunneling) the device prevents unauthorized access to the system
The device can be used to access the KNX bus from any point in the LAN
The security option can be activated or deactivated in the ETS.
The LEDs indicate operating conditions as well as communication errors on the KNX bus
- Voltage:
- via KNX BUS

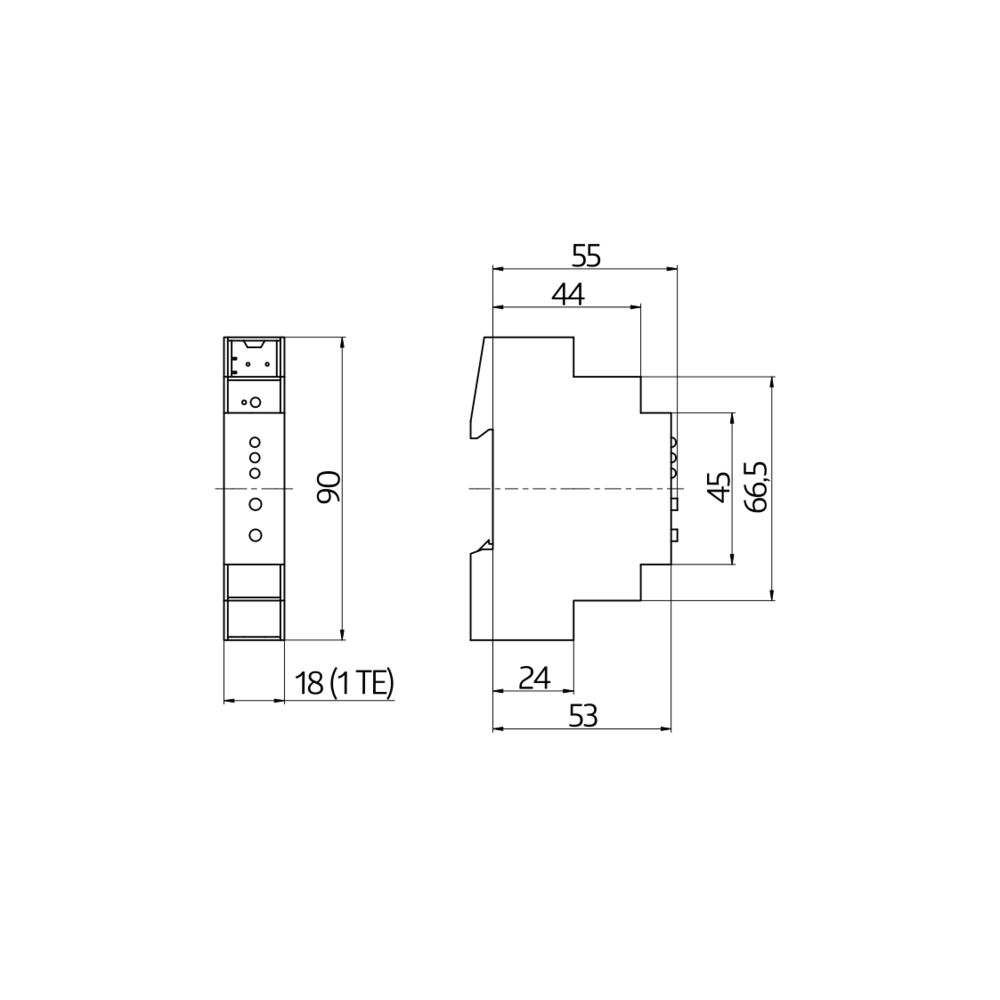

- Dimensions:
- (1 TE) 90 x 18 x 60 mm
- typ. power input:
- 20 mA
- Degree / class of protection:
- IP20 / Class III
- Ambient temperature:
- -5 °C to +45 °C
- Housing:
- polycarbonate, UV-resistant (PC)
- Connections and wires:
- 1 x Bus line: EIB/KNX bus terminal (black/red), 1 x RJ45 socket (ethernet)
Characteristics
Color
White
Model ean
4007529904037
Voltage
via KNX BUS
Dimensions
(1 TE) 90 x 18 x 60 mm
Degree / class of protection
IP20 / Class III
Ambient temperature
-5 °C to +45 °C
Housing
polycarbonate, UV-resistant (PC)
Connections and wires
1 x Bus line: EIB/KNX bus terminal (black/red), 1 x RJ45 socket (ethernet)
Additionally
