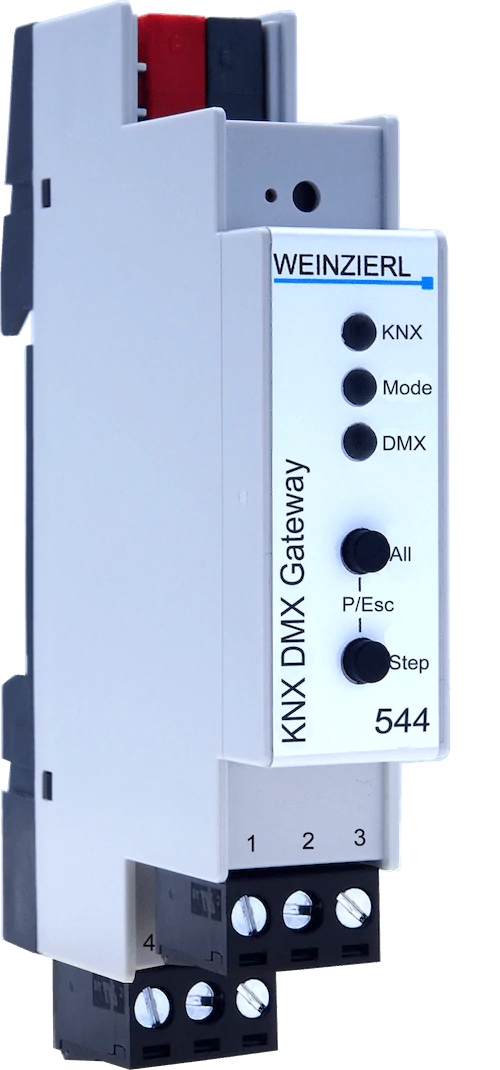

Weinzierl 5358 KNX DMX Gateway 544

TheKNX DMX Gateway 544is acompact gatewaybetween KNX and DMX512 with up to64 freely configurable channels. DMX is a protocol for lighting control, especially in stage technology.Inmaster mode, the device allows convenient control of DMX lights, for example with KNX push-buttons. Up to64 dimming channelsor up to8 RGB/RGBW channelsare available. Several subsets ofDMX512 addressescan be assigned to each channel. The dimming channels enable switching /rel./abs. Dimming of one or more DMX devices via KNX. The RGB/RGBW channels enable the control of RGB/RGBW capable DMX devices. Each RGB colour and each HSV attribute can be individually controlled via KNX. Each channel can be linked with up to8 scenes. In addition,4 sequencersare available in the gateway to carry out more complex tasks.Inslave modeKNX actuators can be controlled from DMX. For example, the room lighting, which is part of the KNX installation, can be controlled via a DMX lighting control panel. Up to64 DMX512 addressescan be individually evaluated and sent to KNX. Dimming value, switching with switching threshold and RGB value are available for interpretation.
