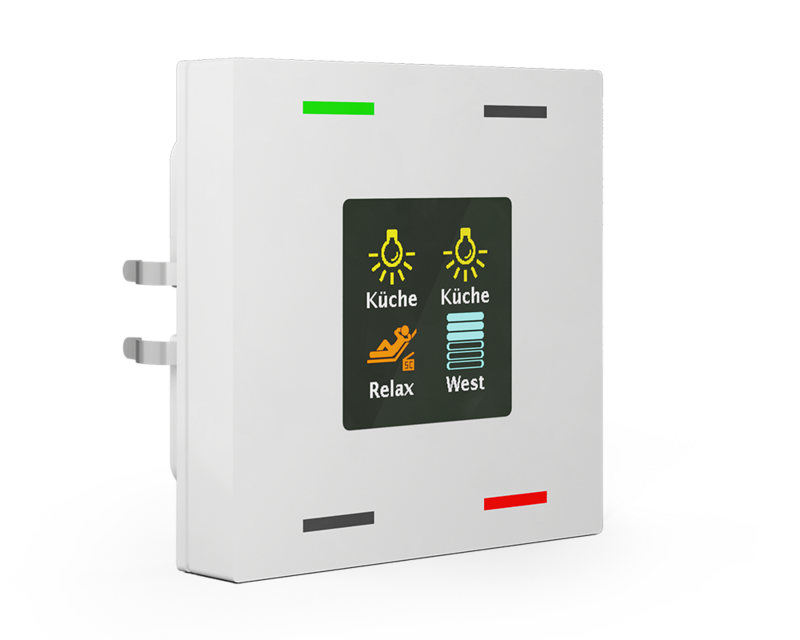

MDT BE-TAS55T4.01 Push-button Smart 55

The black version can be ordered now, available from 04/24The MDT Push-button Smart 55 has a central colour display and mechanical push-buttons. The buttons can be used individually or grouped (horizontally or vertically). In addition to the status indication in the display, each button has its own RGB status LED. The RGBW status LEDs can be controlled using internal or external objects. The LED brightness can be controlled using a day / night and brightness object. Aside from switching, dimming, shutter, scenes or sending values, there are numerous functions to choose from. The Push-button Smart 55 has 4 integrated logic modules.The MDT Push-buttons Smart 55 fit into the switch lines of leading manufacturers, such as:WhiteGIRA Standard 55, E2, E22, Event, EspritBERKER S1, B3, B7JUNG A 500, A PLUS, A CREATION, AS 500, A550, A FLOWMERTEN 1M, M-Smart, M-Plan, M-PureBlackGIRA E2BERKER B3, B7JUNG A550MERTEN M-Pure
GIRA Standard 55, E2, E22, Event, Esprit BERKER S1, B3, B7 JUNG A 500, A PLUS, A CREATION, AS 500, A550, A FLOW MERTEN 1M, M-Smart, M-Plan, M-Pure GIRA E2 BERKER B3, B7 JUNG A550 MERTEN M-Pure Fits 55 mm systems / ranges Active color display for function and status indication Adjustable background color of the display (white or black) Automatic display brightness via light sensor and day / night object Visualization of indoor / outdoor temperature and time With temperature / humidity sensor for room temperature measurement (only BE-TAS55T4.01 and BE-TAS55T406.01) Additional functions for temperature setting and operation mode (only BE-TAS55T4.01 and BE-TAS55T406.01) New multi-touch function, sends up to 4 values / DPTs on the same or different objects Innovative group control with long / extra long button press 1 and 2 button operation for switching, dimming, shutters, values Symbols and plain text adjustable for each button / function Short / long button push and 2 objects Installation in an installation box with included support ring Recommended installation height: 1.05 - 1.20 m No additional power supply required Integrated bus coupling unit Production in Germany certified according to ISO 9001 3 year warranty
