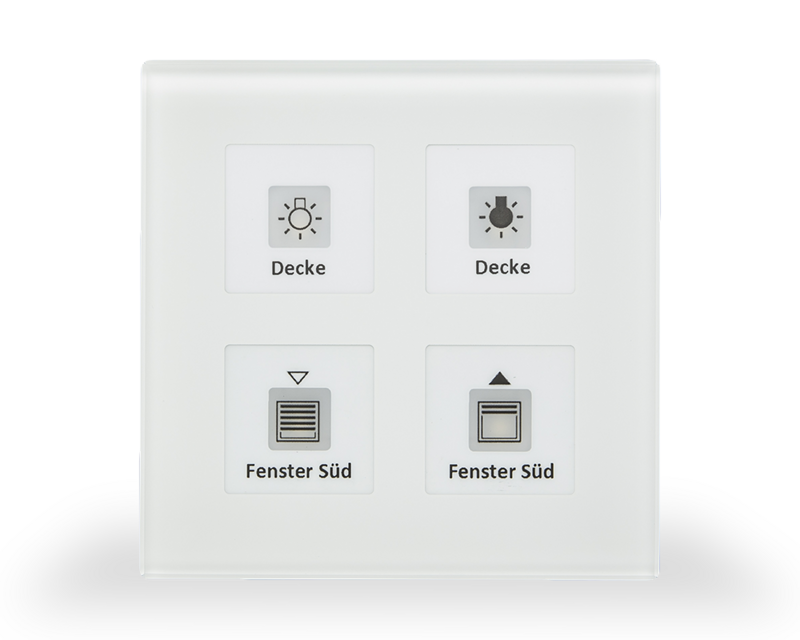

MDT RF-GTT4W.01 KNX RF+ Glass Push-button Plus

The MDT KNX RF+ Glas Push-button Plus releases KNX telegrams after touching the sensor areas on top, 1 or 2 button operation can be parameterized.
KNX RF+ protocol in system mode Commissioning with ETS5 or higher With temperature sensor to measure room temperature Sensor areas can be programmed for 1 or 2 button operation NO or NC contact operation, operational time of push-button adjustable Forced setting function for each output Operation with short / long button push and 2 objects Operation of blinds and shutters, 1 and 2 button operation Can be set as 2-fold switching actuator or 1-fold shutter actuator (version with 4 buttons) Can be set as 4-fold switching actuator or 2-fold shutter actuator (version with 8 buttons) 4 integrated logical functions, cleaning function Additional switching channel (e.g. panic function) Connection via KNX RF+ Line Coupler Surrounding orientation light with day / night object Labelling foil to be inserted behind the glass front To replace conventionel push buttons To upgrade your installation without installing KNX bus cables Power supply 230 V AC Dimensions: 4-fold 92 x 92 mm / 8-fold 92 x 163 mm Installation with included support ring, delivery with labeling foil Integrated bus coupling unit Production in Germany, certified according to ISO 9001 3 year warranty
