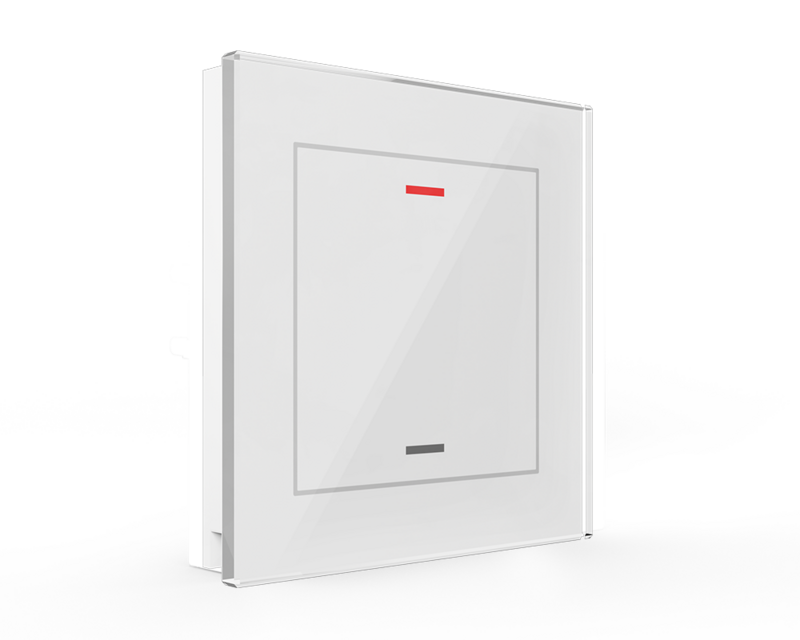

MDT BE-GTL10W.01 Glass Push-button II Lite

Depending on its parameterization the MDT Glass Push-button II Lite releases KNX telegrams. The sensor areas can be programmed for 1 or 2 button operation (BE-GTL4xx.01: 4 single sensor buttons). The RGBW status LEDs can be controlled with internal or external objects. The LED brightness is controllable via day / night or brightness object. In addition to switching, dimming, blinds, scenes or sending values, a lot more functions are available. The Glass Push-button II Lite has 4 integrated logic blocks and an slap function with additional switch channel.
Comprehensive application New multi-touch function, sends up to 4 values / DPTs on the same or different objects Innovative group control with long / extra long button press 1 and 2 button operation for switching, dimming, shutters, values Changing of values / scenes with up to 4 values Operation with short / long button push and 2 objects Slap function with additional switch channel Two RGBW status LEDs per button pair LED brightness controllable via day / night or brightness object 4 logic blocks Installation in an installation box Dimensions (W x H): 92 mm x 92 mm Integrated bus coupling unit Production in Germany, certified according to ISO 9001 3 year warranty
