Item number:
RF-TA55A206.01
Description

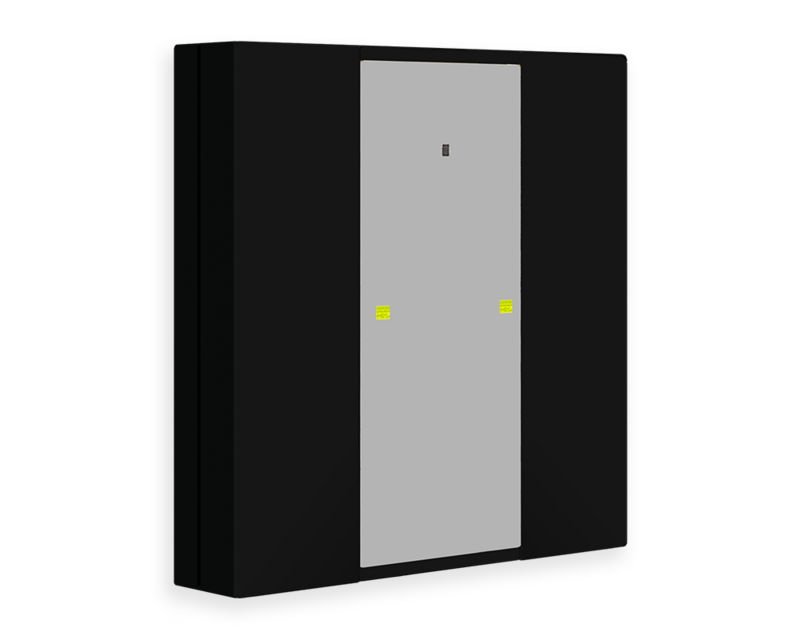

The MDT KNX Push-button Plus releases KNX telegrams after pushing the buttons on top.
KNX RF+ protocol in system mode Commisioning with ETS 5 or higher For operation inside the EU, 868 MHz Fits 55 mm systems Push Buttons can be programmed for 1 or 2 button operation NO or NC contact operation, operational time of push button adjustable Forced setting function for each output Operation with short / long button push and 2 objects 2 integrated logical modules Operation of blinds and shutters, 1 and 2 button operation 2-fold switching actuator or 1-fold shutter actuator (RF-TA55xA.01) Connection via MDT KNX RF+ Line Coupler Centered text area for individual description To replace conventionel push-buttons To upgrade you installation without installing KNX bus cables Power supply 230 V AC Integrated bus coupling unit, installation with enclosed support ring Production in Germany, certified according to ISO 9001 3 year warranty
KNX RF+ protocol in system mode Commisioning with ETS 5 or higher For operation inside the EU, 868 MHz Fits 55 mm systems Push Buttons can be programmed for 1 or 2 button operation NO or NC contact operation, operational time of push button adjustable Forced setting function for each output Operation with short / long button push and 2 objects 2 integrated logical modules Operation of blinds and shutters, 1 and 2 button operation 2-fold switching actuator or 1-fold shutter actuator (RF-TA55xA.01) Connection via MDT KNX RF+ Line Coupler Centered text area for individual description To replace conventionel push-buttons To upgrade you installation without installing KNX bus cables Power supply 230 V AC Integrated bus coupling unit, installation with enclosed support ring Production in Germany, certified according to ISO 9001 3 year warranty
The documents
MDT_DS_RF_Push_Button
345 KB
