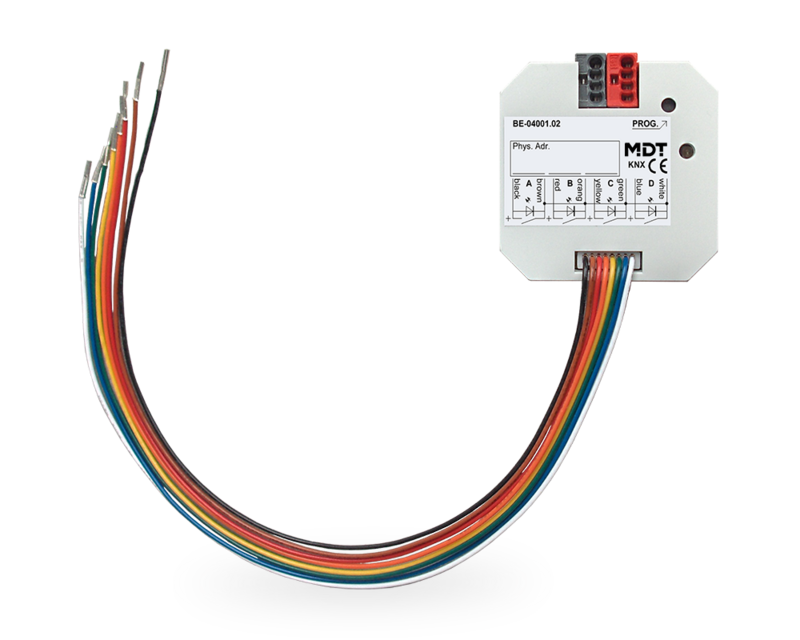

MDT BE-04001.02 Universal Interface BE

The MDT Universal Interface BE, for example, makes conventional push-buttons, switches, window and auxiliary contacts “smart” for KNX. The comprehensive application provides the suitable parameters for a wide range of applications. Versions for floating contacts and 230 V AC are available.
To connect push-buttons or auxiliary contacts Each input can be set as 1,5 mA low current output for LED (Not with BE-02230.01) New multi-touch function, sends up to 4 values / DPTs on the same or diffrent objects Innovative group control with long / extra long button press 4 integrated logic modules, e.g. evaluation of the inputs (e.g. window closed or sending second object) NO or NC contact operation, programmable length of button push Dimming and shutter function for 1 and 2 button operation Forced setting function and switching commands for each output Short / long button push with 2 objects Integrated pulse and switching counters with extensive counter functions Cyclical sending of contact state programmable Flush mounted installation (length of connection cables: 22 cm) Dimensions (W x H x D): 41 mm x 41 mm x 12 mm Integrated bus coupling unit Production in Germany, certified according to ISO 9001 3 year warranty
