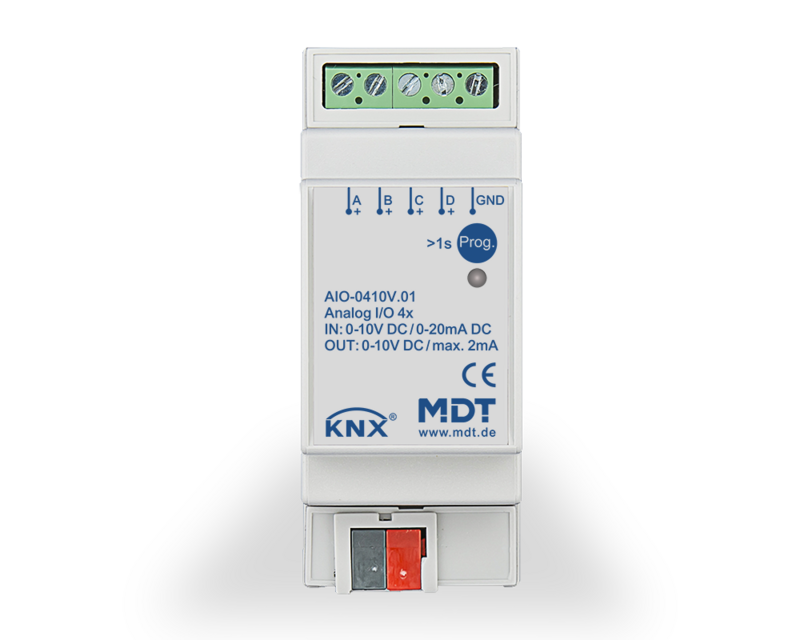

MDT AIO-0410V.01 Analog In / Output

The MDT Analog In / Output AIO is suitable for controlling devices with 0-10 V input (e.g. ventilation systems) and for recording 0-20 mA (4-20 mA) / 0-10 V measurement data (e.g. from fill-level or pressure sensors). Each channel can be configured both as an input and as an output and is galvanically separated from the KNX bus.
Each channel can be configured indepentently (in / output) In / outputs are galvanically-isolated from the bus In / outputs are galvanically-connected together Voltage for output operation is generated inside the actuator No external power supply required Input operation 0-10 V / 2-10 V or 0-20 mA / 4-20 mA (switchable) - Conversion of measuring unit and DPT can be parameterized - Min/max function, wire breakage detection - Threshold and traffic light function Output functions 0-10 V: - Control by 1 Byte, 2 Byte float or 1 Bit objects - Day/night function to limit control value - Emergency mode if given value fails Flush mounted version: - Fitting in a installation boxsocket - Dimensions (W x H x D): 41 mm x 41 mm x 12 mm Quick application download (long frame support with ETS5 or higher) Production in Germany, certified according to ISO 9001 3 year warranty
