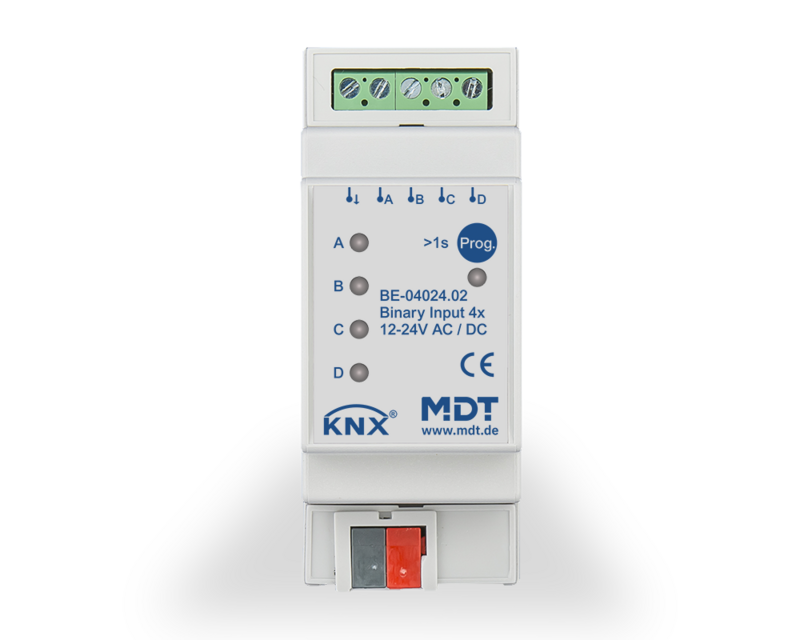

MDT BE-04024.02 Binary Inputs BE

The MDT Binary Input BE, for example, makes conventional push-buttons, switches, window and auxiliary contacts “smart” for KNX. The comprehensive application provides the suitable parameters for various applications. Versions for floating contacts, 24 V AC/DC and 230 V AC are available.
To connect push-buttons or window / auxiliary contacts New multi-touch function, sends up to 4 values / DPTs on the same or diffrent objects Innovative group control with long / extra long button press 4 integrated logic modules, e.g. evaluation of the inputs (e.g. window closed or sending second object) NO or NC contact operation, sending contact status Operation of blinds and shutters, 1 and 2 button operation Forced setting function for each output Scenes, block objects for each channel Operation with short / long button push and 2 objects Integrated pulse and switching counters with extensive counter functions (suitable for 30 ms S0 pulses) Cyclical sending, sending after reset Internally generated contact voltage of 12 V Production in Germany, certified according to ISO 9001 3 year warranty
