Item number:
RF-BE2230.01
Description

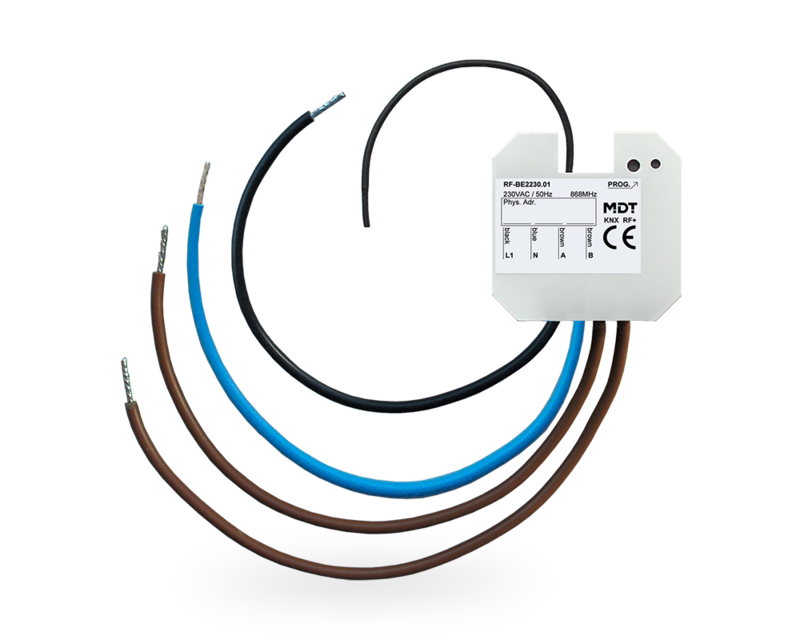

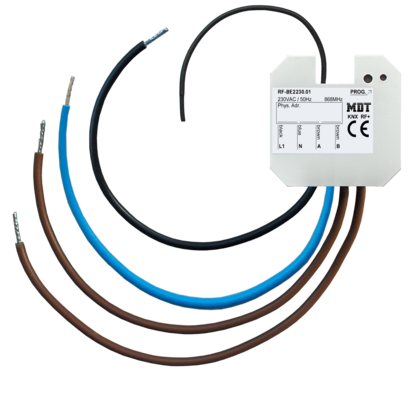

The Universal Interface detects status changes at the inputes and triggers KNX telegrams depending on his parameterizations.
KNX RF+ protocol in system mode Commissioning with ETS 5 or higher For operation inside the EU, 868 MHz To connect 230 V push-buttons, switches, presence detectors 4 integrated logic modules, e.g. evaluation of the inputs (e.g. window closed or sending second object) NO or NC contact operation, operational time of push-button adjustable Operation of blinds and shutters, 1 and 2 button operation Forced setting function for each output Operation with short / long button push and 2 objects Counting of pulses Cyclical sending of contact state programmable Flush mounted in an installation box Connection via MDT KNX RF+ Line Coupler To upgrade your installation without installing KNX bus cables Power supply 230 V AC Dimensions (W x H x D): 41 mm x 41 mm x 22 mm Integrated bus coupling unit Production in Germany, certified according to ISO 9001 3 year warranty
KNX RF+ protocol in system mode Commissioning with ETS 5 or higher For operation inside the EU, 868 MHz To connect 230 V push-buttons, switches, presence detectors 4 integrated logic modules, e.g. evaluation of the inputs (e.g. window closed or sending second object) NO or NC contact operation, operational time of push-button adjustable Operation of blinds and shutters, 1 and 2 button operation Forced setting function for each output Operation with short / long button push and 2 objects Counting of pulses Cyclical sending of contact state programmable Flush mounted in an installation box Connection via MDT KNX RF+ Line Coupler To upgrade your installation without installing KNX bus cables Power supply 230 V AC Dimensions (W x H x D): 41 mm x 41 mm x 22 mm Integrated bus coupling unit Production in Germany, certified according to ISO 9001 3 year warranty
