Item number:
93365
Description

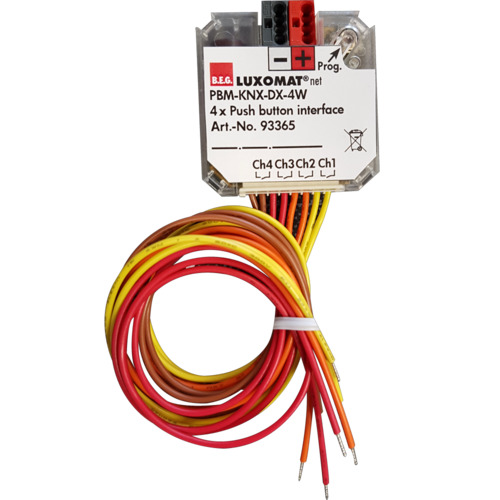

Binary input or output device (push button interface) for pattress boxes (60 mm)
There are four channels available. Each can either be used as input for a potential-free push-button or switch contact or as binary output for switching a control lamp.
User-friendly ETS interface
The following functions are possible:
• Switching
• Forced operation
• Percentage
• Temperature
• HVAC mode
• Dimming
• Blinds control
• Scene
• Edge function
• Counter
Settings ex ETS 4 for integration in KNX systems
The product database for import into the ETS database can be downloaded from the B.E.G. homepage.
- Voltage:
- via KNX BUS

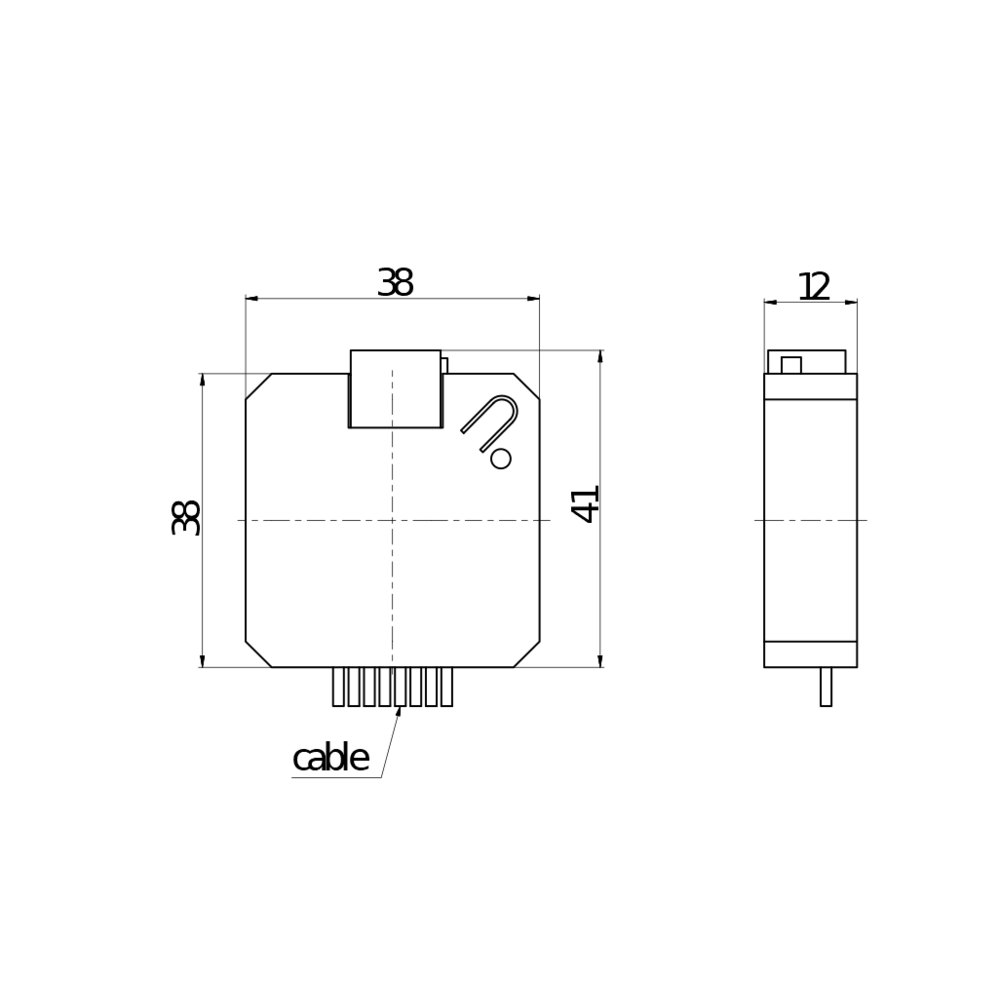

- Dimensions:
- 38 x 41 x 12 mm
- typ. power input:
- 9.5 mA (typ.) (Imax parameterisable 12.5 mA or 20 mA)
- Degree / class of protection:
- IP20 / Class III
- Ambient temperature:
- -5 °C to +45 °C
- Display elements:
- Programming LED
- Manual operation:
- Programming button
- KNX TP 256:
- Yes
- Connections and wires:
- 2 x 1 mm pins for bus terminal
plug board: 8 pin - LED connector:
- Imax 3.6 mA const. (PWM) LED 3.5 V / 4 mA
Additionally
We are official suppliers of KNX equipment.
Found cheaper?
On order
Our managers will be sure to contact you with the terms of your order
Special price for automation specialists.
To get a discount, order the product online or email info@knxpoint.com
To get a discount, order the product online or email info@knxpoint.com
Characteristics
Model ean
—
4007529933655
Voltage
—
via KNX BUS
Dimensions
—
38 x 41 x 12 mm
Degree / class of protection
—
IP20 / Class III
Ambient temperature
—
-5 °C to +45 °C
Connections and wires
—
2 x 1 mm pins for bus terminal
plug board: 8 pin
