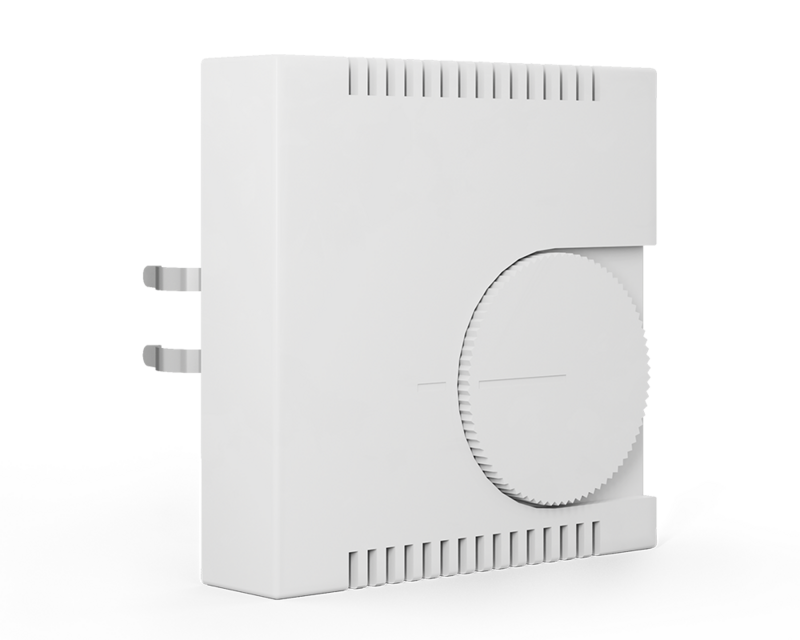

MDT SCN-RT1UPE.01 Room Temperature Controller/-Sensor 55

The MDT Room Temperature Controller 55 is used for detecting the temperature of indoor rooms and controlling this. It is used, for example, in combination with an MDT Universal Actuator AKU or heating actuators without an integrated controller.The MDT Room Temperature Sensor 55 records the temperature and makes it available to other units such as the MDT Heating Actuator AKH. The temperature measuring range is between -10 and 50 °C.The MDT Room Temperature Controller / Sensor 55 fits into the switch lines of leading manufacturers, such as:GIRA Standard 55, E2, E22, Event, EspritBERKER S1, B3, B7JUNG A 500, A PLUS, A CREATION, AS 500, A550, A FLOWMERTEN 1M, M-Smart, M-Plan, M-Pure
GIRA Standard 55, E2, E22, Event, Esprit BERKER S1, B3, B7 JUNG A 500, A PLUS, A CREATION, AS 500, A550, A FLOW MERTEN 1M, M-Smart, M-Plan, M-Pure Fits 55 mm systems / ranges Selectable temperature controller (PI, two-position, PWM) Setpoint value is stored on voltage failure Bit / Byte object to set the given value For indoor temperature controlling, range -10° to +50 °C Limit values min / max, Frost protection alarm, Memory for min / max Setpoint value via visualization, e.g. MDT VisuControl Day- / night- / frost- / heat protection operation Status feedback by HVAC and RHCC status objects Operation mode can be set via Bit / Byte objects Installation with support ring (included in delivery) Integrated bus coupling unit Production in Germany, certiied according to ISO 9001 3 year warranty
