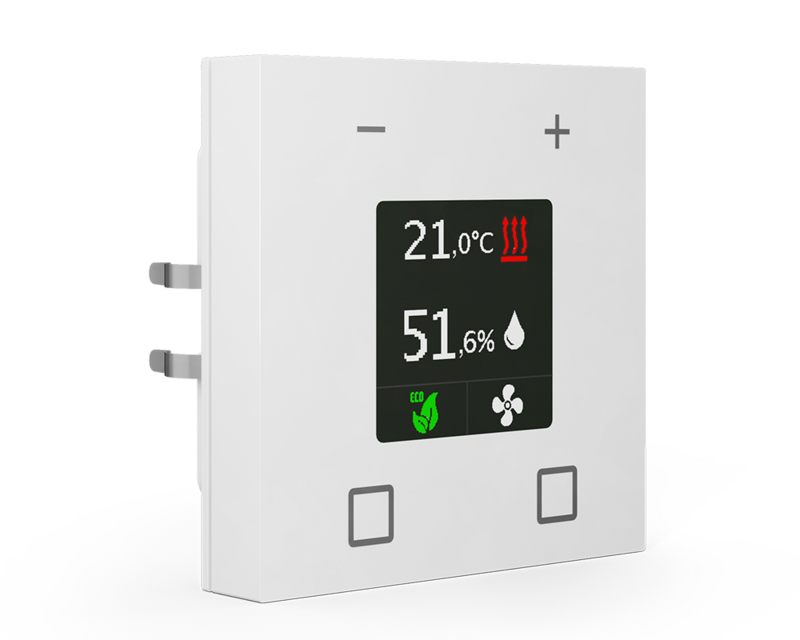

MDT SCN-RTR63S.01 Room Temperature Controller Smart 63

The MDT Room Temperature Controller Smart 63 with integrated temperature and humidity sensor is used for controlling the temperature of indoor rooms. Switch actuators / heating actuators can be controlled by the room temperature controller along with thermal actuators or motorised KNX actuators. In addition, the MDT Room Temperature Controller Smart has 4 binary inputs for connecting floating contacts.The MDT Room Temperature Extension Unit Smart with an integrated temperature and humidity sensor is used for recording the temperature of indoor rooms. The extension unit can be operated either as a second unit along with the MDT Room Temperature Controller Smart (integrated temperature controller!) or as a stand-alone unit with the MDT Heating Actuator AKH (integrated temperature controller!).The MDT Room Temperature Controller Smart 63 fits into the switch lines of leading manufacturers, such as:Busch-Jaeger future linear, solo, carat, Busch-axcent
Busch-Jaeger future linear, solo, carat, Busch-axcent Fits 63 mm systems / ranges Active color display to indicate function and status Background color w/b and display brightness adjustable Display of set and actual temperature For indoor temperature controll Range -10 to +50 °C Selectable temperature controller (PI, two-position, PWM) Simple setpoint adjustment via separate +/- buttons 1 Bit +/-, 1 Byte oder 2 Byte absolute object for setpoint adjustment Setpoint values are stored on bus voltage failure Limit values min / max, frost protection alarm, min / max memory Operation mode can be set via Bit / Byte objects Temperature and humidy sensor with dew point calculation Message when leaving the comfort zone 4 binary inputs to connect floating contacts (push-buttons or window / auxiliary contacts) Ventilation control by hand or automatic operation 14 Byte object for plain text diagnostic Installation in an installation box with included support ring Recommended installation height: 1.6 m Length of connection cables: 22 cm Integrated bus coupling unit Production in Germany certified according to ISO 9001 3 year warranty
