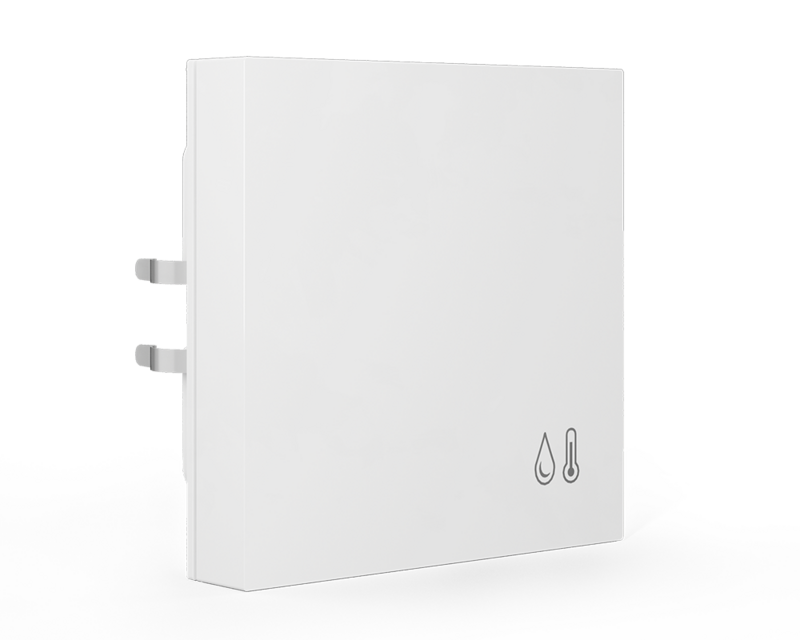

MDT SCN-RTR63O.01 Object Controller 63

The MDT Object Controller 63 with integrated temperature and humidity sensor is used for controlling the temperature of indoor rooms. The comfort range of the room climate is defined using Min / Max values when parameterising the object controller. Switch actuators / heating actuators can be controlled by the object controller along with thermal actuators or motorised KNX actuators.The MDT Object Controller 63 fits into the switch lines of leading manufacturers, such as:Busch-Jaeger future linear, solo, carat, Busch-axcent
Busch-Jaeger future linear, solo, carat, Busch-axcent Fits for 63 mm systems / ranges Room temperature controller for indoor rooms Range -10 to +50 °C Selectable temperature controller (PI, two-position, PWM) 1 Bit +/-, 1 Byte oder 2 Byte absolute object for setpoint adjustment Setpoint values are stored on bus voltage failure Limit values min / max, frost protection alarm, min / max memory Operation mode can be set via Bit / Byte objects Temperature and humidy sensor with dew point calculation Message when leaving the comfort zone 4 binary inputs to connect floating contacts (push-buttons or window / auxiliary contacts) Ventilation control by hand or automatic operation 14 Byte object for plain text diagnostic Installation in an installation box with included support ring Recommended installation height: 1.6 m length of connection cables: 22 cm Integrated bus coupling unit Production in Germany certified according to ISO 9001 3 year warranty
