Item number:
SCN-RTRGS.02S
Description

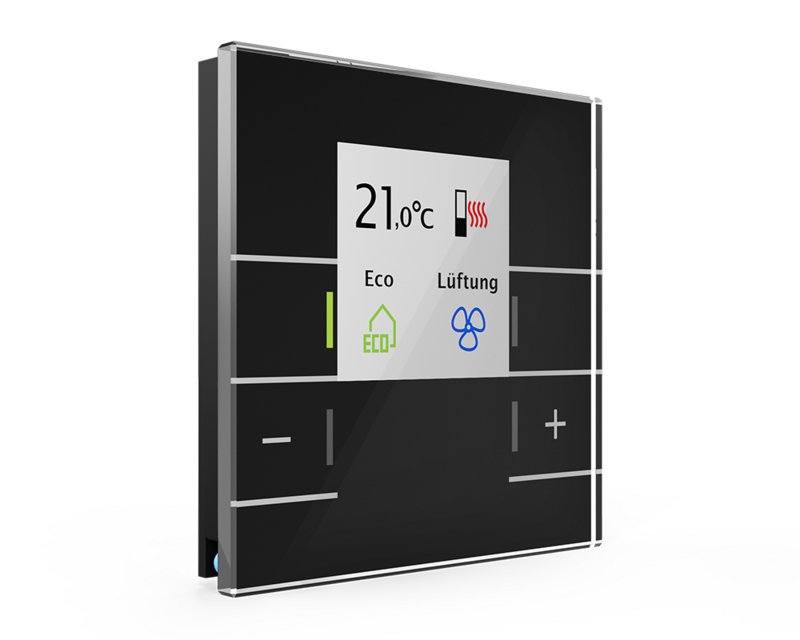

Glass Room Temperature Controller with automatic setpoint reduction based solar radiation.
Active colour display to indicate function and status Background colour w / b and display brightness adjustable Display of set and actual temperature For indoor temperature controlling Range -10 to +50 °C Selectable temperature controller (PI, two-position, PWM) Operation as room temperature extension unit possible Simple setpoint adjustment via separate + / - buttons 1 Bit + / -, 1 Byte or 2 Byte absolute object for setpoint adjustment Setpoint values are stored on bus voltage failure Limit values min / max, frost protection alarm, min / max memory Operation mode can be set via Bit / Byte objects Ventilation control by hand or automatic operation 14 Byte object for plain text diagnostic Recommended installation height: 1.60 m Dimensions (W x H): 92 mm x 92 mm
Active colour display to indicate function and status Background colour w / b and display brightness adjustable Display of set and actual temperature For indoor temperature controlling Range -10 to +50 °C Selectable temperature controller (PI, two-position, PWM) Operation as room temperature extension unit possible Simple setpoint adjustment via separate + / - buttons 1 Bit + / -, 1 Byte or 2 Byte absolute object for setpoint adjustment Setpoint values are stored on bus voltage failure Limit values min / max, frost protection alarm, min / max memory Operation mode can be set via Bit / Byte objects Ventilation control by hand or automatic operation 14 Byte object for plain text diagnostic Recommended installation height: 1.60 m Dimensions (W x H): 92 mm x 92 mm
