Intesis INBACPRT1K20000  Gateway to connect BACnet MSTP or BACnet IP installations with PROFINET networks - 1200 points

Description This bidirectional gateway provides a straightforward and fast integration thanks to its unique onboard features. The BTL mark ensures 100% compatibility and, at the same time, guarantees a seamless integration with any BACnet Client. At the same time, its PROFINET-IO interface enables communication with a PROFINET PLC, ensuring robust data transmission between BACnet and PROFINET networks. The configuration is carried out using Intesis MAPS. This PC-based software allows system integrators to define the required settings for the device, using predefined templates and diagnostic tools to save time and perform robust integrations.

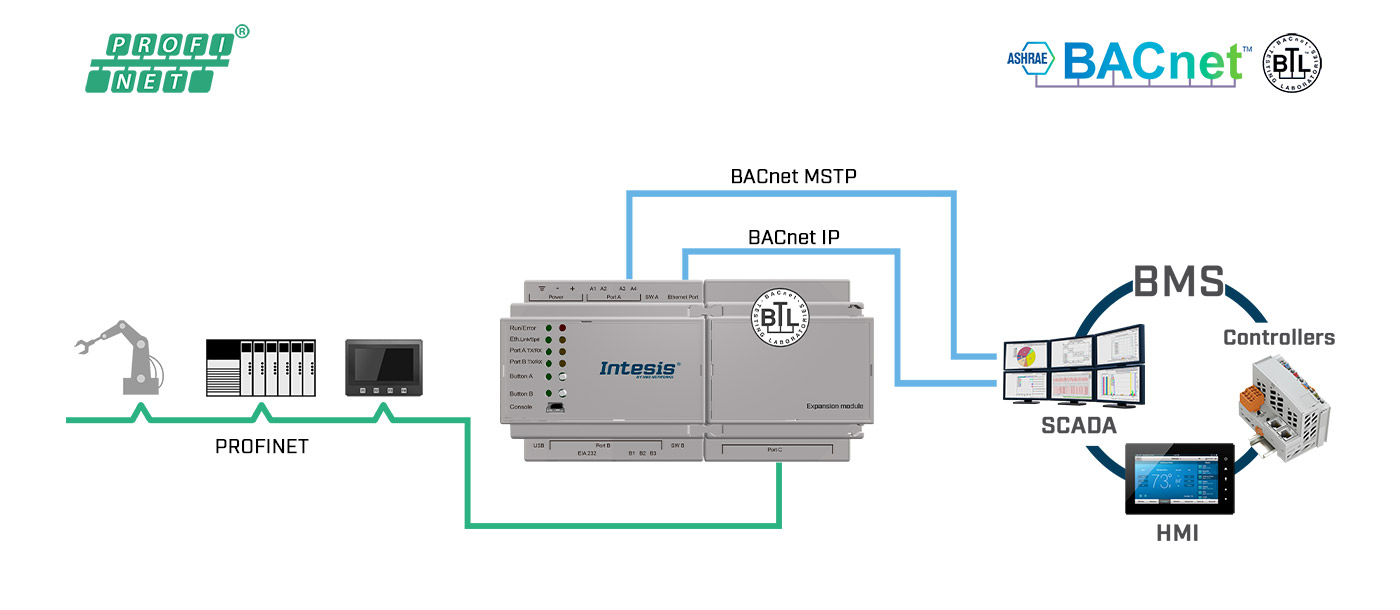

The Intesis BACnet-PROFINET gateway allows you to seamlessly inter-connect PLC/BMS systems and their connected devices between BACnet IP&MSTP Control systems and PROFINET networks. This gateway works as a BACnet slave/server on the BACnet side and as a PROFINET I/O device on the PROFINET side. FEATURES UL Certified. BTL Certified. Support for BACnet IP or BACnet MSTP. BACnet Advanced features available (Trend logs, Calendars, etc.). PROFINET-IO Device interface. Easy integration into a controlling PROFINET PLC thanks to its .GSDML and TAG files. Supports up to a maximum of 500 bytes of Input and Output data. Smooth integration & updates with Intesis MAPS.
