Intesis INKNXHIT001R000  Hitachi Commercial & VRF systems to KNX Interface with binary inputs - 1 unit

Description DIRECT CONNECTION TO INDOOR UNITS The gateway is wired directly to an indoor unit. This allows not only the control of the main AC functions such as operating mode, fan speed, temperature setpoint…but the monitoring of errors, alarms and some internal variables. EASY TO SET UP BY ETS (STANDARD KNX TOOL) The connection between the two networks is quickly set up in the ETS configuration tool using the product database available to download. Thanks to the high number of supported KNX DPTs and the KNX certification, the gateway ensures interoperability with any KNX device in the market.

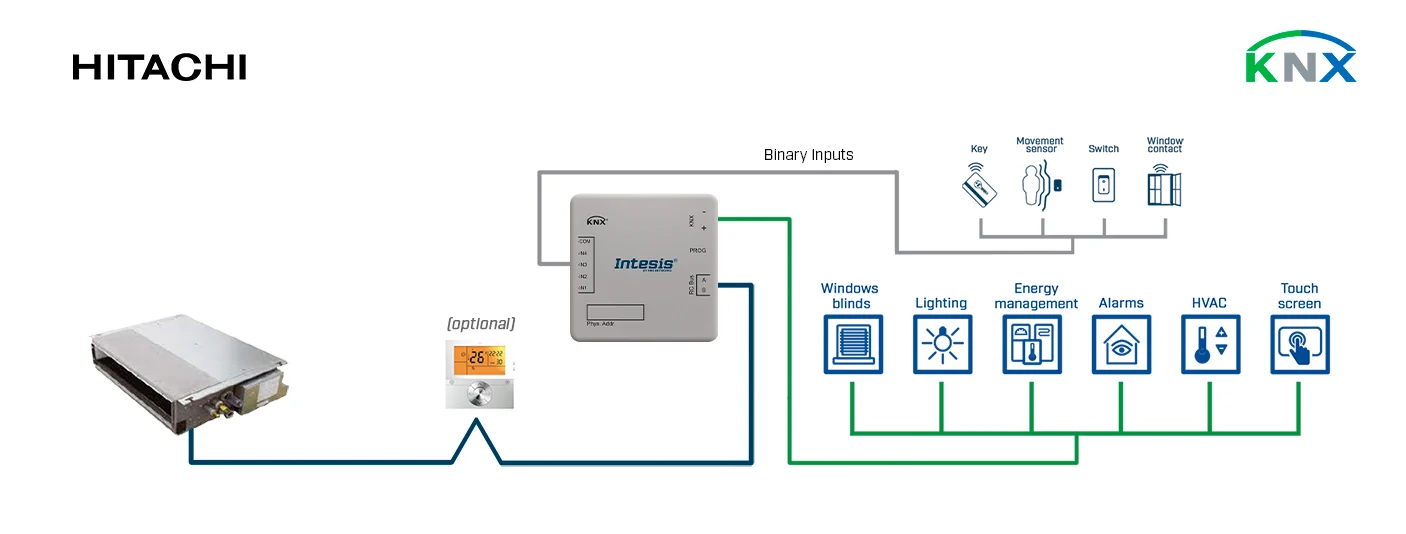

The Hitachi-KNX gateway allows fully bi-directional communication between Hitachi Commercial & VRF systems and KNX installations. Additionally, four potential-free binary inputs provide the possibility to integrate external devices, such as window contacts or presence detectors, that allows launching internal functions focused to improve energy efficiency. FEATURES KNX certified. Configured by ETS standard configuration tool. Reduced dimensions allowing a quick installation inside the Air Conditioner unit. Offered all the required DPT objects to be compatible with all KNX thermostats in the market. Energy efficiency functions, such as “timeout”, “open window” or “Occupancy”. Costs related to HVAC systems in a building are one of the highest and these functions allow to reduce them. Smooth integration of KNX thermostats allowing the control of the AC unit by the own temperature sensor of the thermostat. Simultaneous control of the AC unit by the IR remote controller and by KNX. Total control and monitoring of the AC unit from KNX, including AC unit’s internal variables, running hours counter (for filter maintenance control) and error indication. Up to 5 scenes can be saved and executed from KNX.
