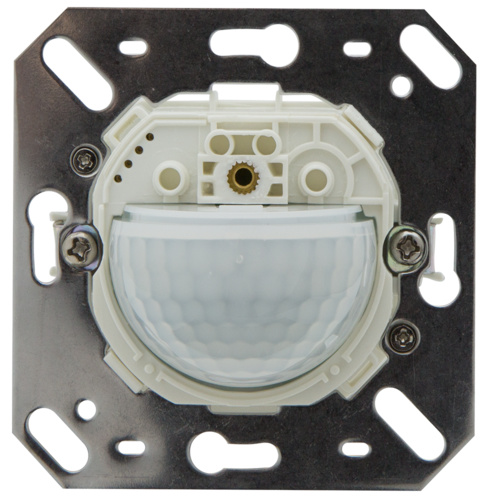

BEG Luxomat 93525 KNX Gen7 Deluxe occupancy detector Indoor 180-KNXs-DX covering not included

COMING SOON! KNX occupancy detector with integrated KNX bus coupler, especially for installation in walls KNX Secure ready HCL/RGB control Parameterisation from ETS 5 for integration into KNX systems Individual adaption of the PIR sensor sensitivity Mixed light measurement using internal and remote (optional) light sensors Intelligent semi-automatic mode, occupancy-independent regulating mode (photoelectric switch), full automatic mode 1 x light output (for regulating or switching), 1 x slave output, 3 x HVAC outputs (separately programmable) Regulation of up to three lighting groups using offset (external influence possible) Short presence, self-adjusting follow-up time, corridor function Various locking functions Soft-start Two logic modules Recall of light scenes Deactivatable status indicators Temperature- and noise sensor The product database for import into the ETS database can be downloaded from the B.E.G. homepage. Detection area can be extended thanks to master-slave-mode Extensive optimization options for light measurement Measured light value is communicated to the bus Adaption of dimming curve Bidirectionally remote control-capable with the IR adapter and the B.E.G. smartphone app PIN code IR remote control-capable via IR remote control (optionally) 5 button remote control, programmable at choice (accessory) Programming button (phys. address) can be operated via remote control HVAC mode (0=automatic, 1=comfort, 2=stand-by, 3=economy, 4=antifreeze/heat protection) Manual influence via external KNX push buttons possible Function control (heartbeat, cyclical sending) Occupancy simulation Forced switch-off Intelligent central-off function Premonition of switch-off Burn-in function for fluorescent lamps selectable from 1h till 100h Behaviour upon bus voltage return definable at choice Variable safety pause after switching off the lights Application examples: monitoring of public lavatories, corridors, archive rooms, conference rooms

Voltage:

via KNX BUS

Dimensions:

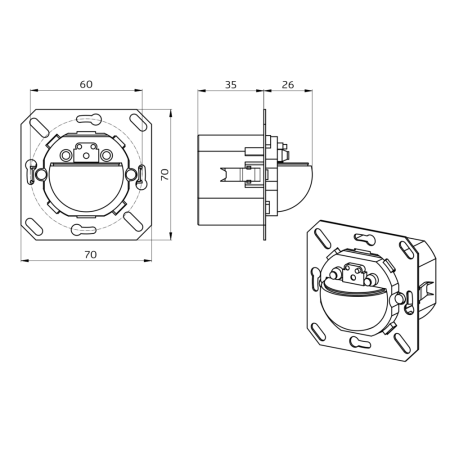

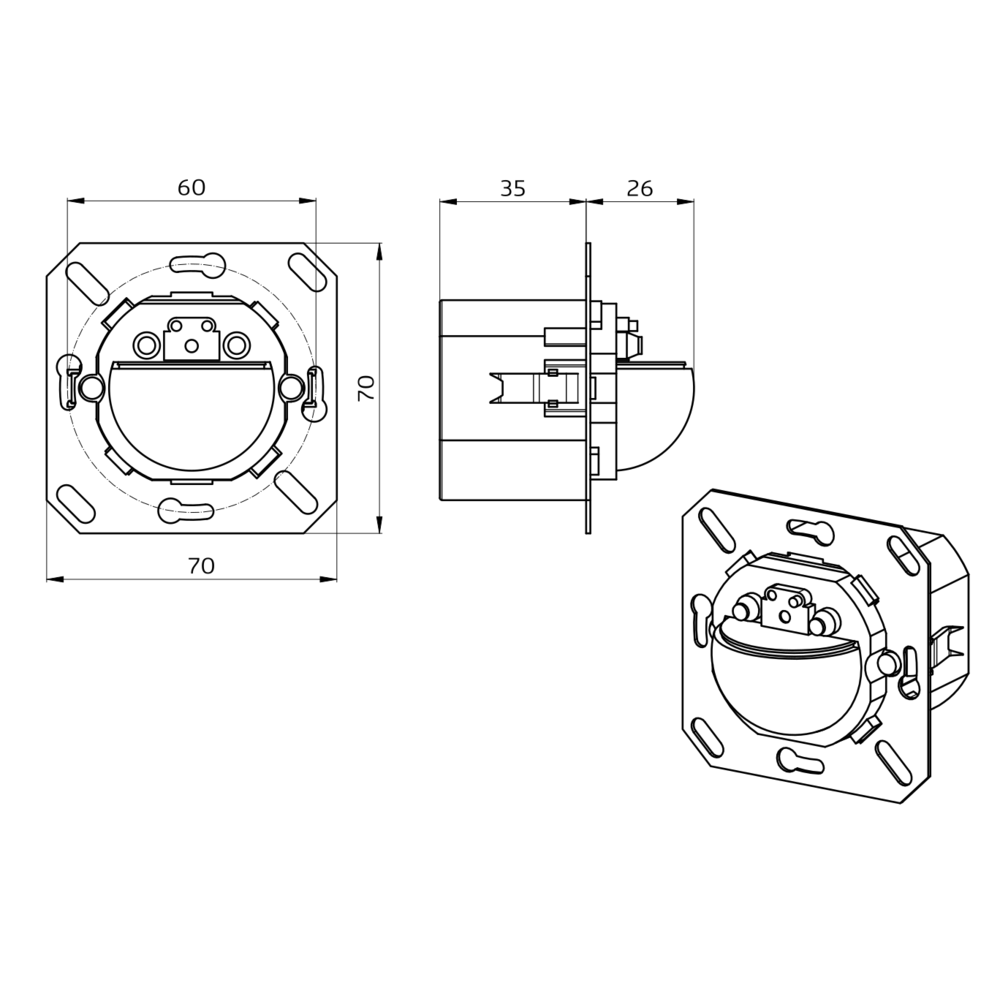

(covering not included) 70 x 70 x 61 mm

typ. power input:

12 mA

Detection area:

horizontal 180° (Wall mounting)

Range:

max. 10 m across
max. 3 m towards

Monitored area (tangential movement):

150 m² / 1.1 m mounting height

Mounting height min./max./recommended:

1 m / 2.2 m / 1.1 m

Degree / class of protection:

IP20 / Class III

Impact strength:

IK05

Temperature measurement range:

-5 °C to +45 °C

Ambient temperature:

-25 °C to +55 °C

Housing:

polycarbonate, UV-resistant

Number of light sensors:

1

Number of PIR sensors:

1

KNX TP 256:

Yes

Orientation light:

5 – 100 % / OFF / 1 min – 255 min

Night light:

5 – 100 %

Brightness set value:

5 – 2000 Lux
