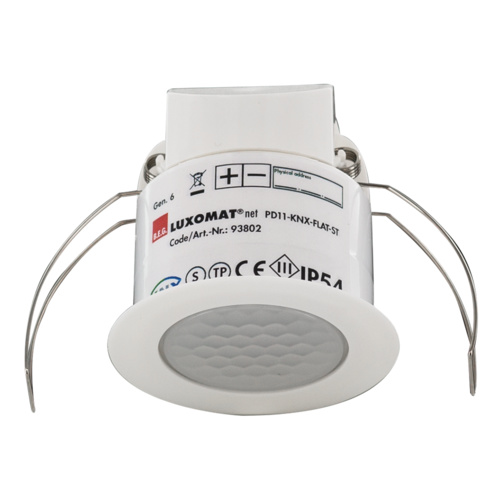

BEG Luxomat 93802 KNX Gen6 Standard occupancy detector PD11-KNX-FLAT-ST-FC

Product being phased out- contact us for details Link to the successor article Low profile KNX occupancy detector with integrated KNX bus connector 1 x light output (for regulating or switching), 1 x slave output, 3 x HVAC outputs (separately programmable) Intelligent semi-automatic mode, occupancy-independent regulating mode (photoelectric switch), full automatic mode Individual adaption of the PIR sensor sensitivity Measuring of mixed light thanks to internal light sensor Various locking functions Status LEDs can be activated / deactivated Programming button (phys. address) can be operated via remote control Regulation/switching of three light groups via offset (external influence possible) Short presence, self-adjusting follow-up time, corridor function Recall of light scenes HVAC mode (0=automatic, 1=comfort, 2=stand-by, 3=economy, 4=antifreeze/heat protection) Detection area can be extended thanks to master-slave-mode Extensive optimization options for light measurement Measured light value is communicated to the bus IR remote control-capable via IR remote control (optionally) PIN code Manual influence via external KNX push buttons possible Function control (heartbeat, cyclical sending) Forced switch-off Intelligent central-off function Premonition of switch-off Behaviour upon bus voltage return definable at choice Variable safety pause after switching off the lights Settings ex ETS 4 for integration in KNX systems The product database for import into the ETS database can be downloaded from the B.E.G. homepage. Adaption of dimming curve Determination of the reflection factor, e.g. on a desk, with the optional BLE-IR-Adapter Burn-in function for fluorescent lamps selectable from 1h till 100h Soft-start Spring clips for quick and easy installation in suspended ceilings Includes blinds and clamp ring for installation into light fittings Flush mounting with accessory 92833, surface mounting with accessories 92833 and 92121 Application examples: underground car parks, entrance halls, corridors/hallways, staircases, small offices, open-plan offices, conference rooms

Voltage:

via KNX BUS

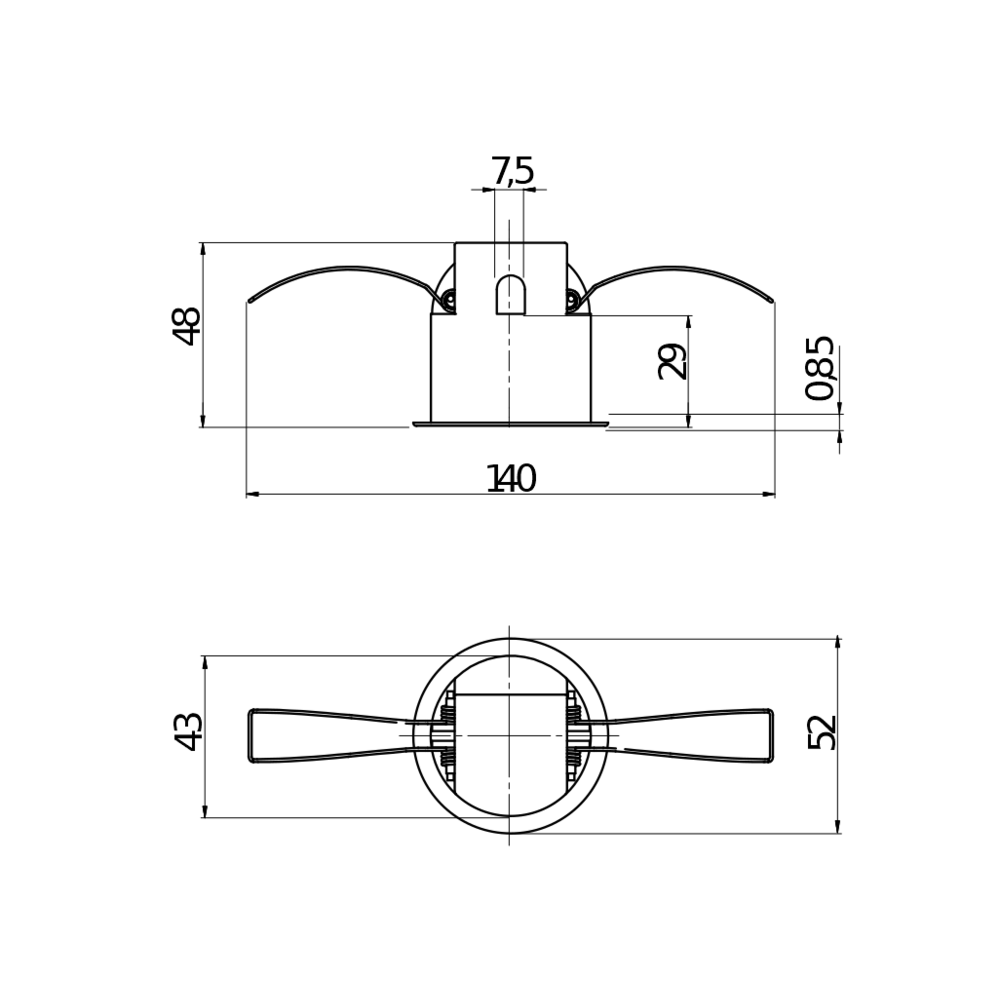

Dimensions:

Ø 52 x 48 mm

typ. power input:

12 mA

Detection area:

horizontal 360° (Ceiling mounting)

Range:

max. Ø 9 m across
max. Ø 6 m towards
max. Ø 3 m seated

Monitored area (tangential movement):

63 m² / 2.5 m mounting height

Mounting height min./max./recommended:

2 m / 5 m / 2.5 m

Degree / class of protection:

IP54 / Class III

Ambient temperature:

-25 °C to +55 °C

Housing:

polycarbonate, UV-resistant

KNX TP 256:

Yes

Orientation light:

5 – 100 % / OFF / 1 min – 255 min

Night light:

5 – 100 %

Brightness set value:

5 – 2000 Lux
