BEG Luxomat 93399 KNX Gen6 Deluxe occupancy detector PD4-KNX-GH-DX-SM

Product being phased out- contact us for details Link to the successor article KNX occupancy detector designed for high-bay warehouses, with integrated KNX bus connector External telescopic light sensor for a mounting height between 5 and 16 m (mechanically adjustable) for measuring the light according to the application. Mixed light measurement with internal and external light sensor 1 x light output (for regulating or switching), 1 x slave output, 3 x HVAC outputs (separately programmable) Intelligent semi-automatic mode, occupancy-independent regulating mode (photoelectric switch), full automatic mode Two logic modules Individual adaption of detection sensitivity for each PIR sensor Direction of movement can be identified Various locking functions Status LEDs can be activated / deactivated Programming button (phys. address) can be operated via remote control Regulation/switching of three light groups via offset (external influence possible) Short presence, self-adjusting follow-up time, corridor function Recall of light scenes Temperature sensor HVAC mode (0=automatic, 1=comfort, 2=stand-by, 3=economy, 4=antifreeze/heat protection) 5 button remote control, programmable at choice (accessory) Occupancy simulation PIR sensors can be deactivated individually Detection area can be extended thanks to master-slave-mode Extensive optimization options for light measurement Measured light value is communicated to the bus IR remote control-capable via IR remote control (optionally) PIN code Manual influence via external KNX push buttons possible Function control (heartbeat, cyclical sending) Forced switch-off Intelligent central-off function Premonition of switch-off Behaviour upon bus voltage return definable at choice Variable safety pause after switching off the lights Settings ex ETS 4 for integration in KNX systems The product database for import into the ETS database can be downloaded from the B.E.G. homepage. Adaption of dimming curve Determination of the reflection factor, e.g. on a desk, with the optional BLE-IR-Adapter Burn-in function for fluorescent lamps selectable from 1h till 100h Soft-start Blinds There are markings to ensure correct alignment during installation When used in high-bay warehouses, care should be taken that, in the cross-aisles of the warehouse, detectors are installed that can detect movement only in the desired aisle locations, by using blinds or other technical arrangements. Application examples: high-bay warehouse

Voltage:

via KNX BUS

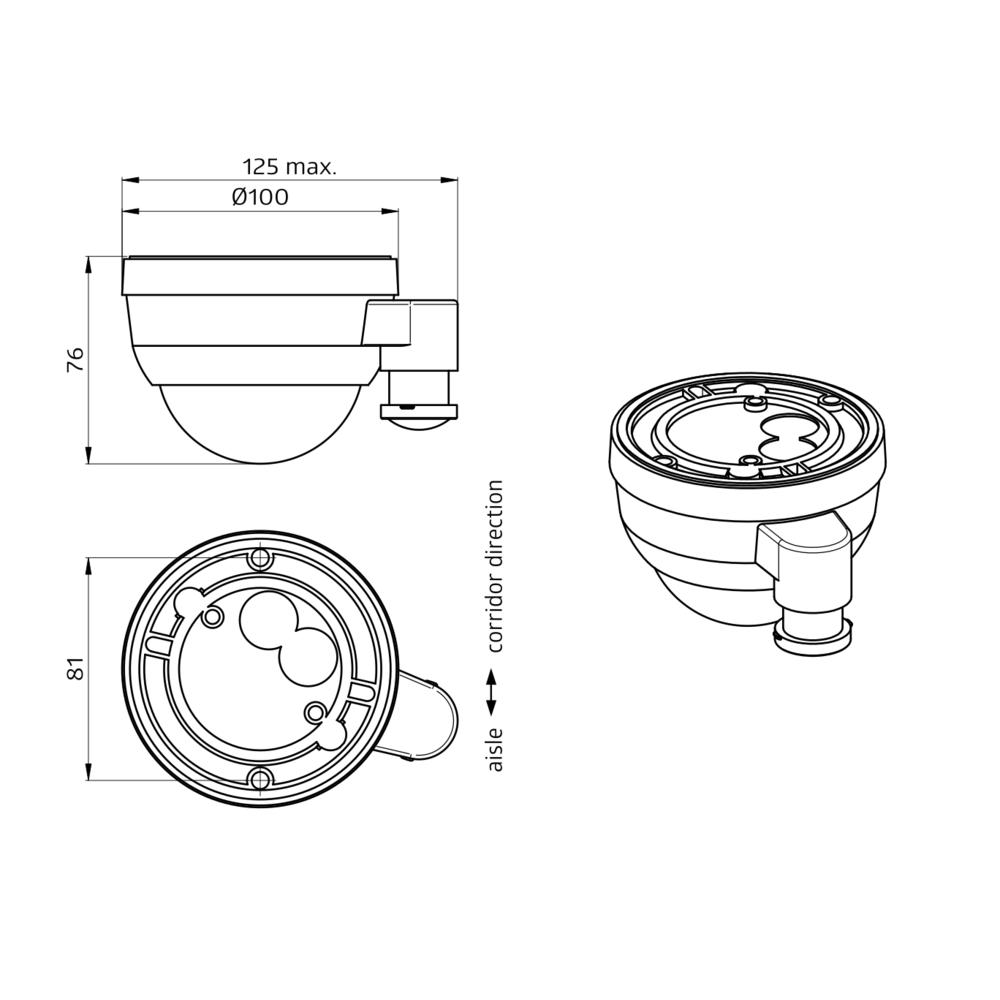

Dimensions:

Ø 101 x 76 mm

typ. power input:

12 mA

Detection area:

horizontal 360° oval (Ceiling mounting)

Range:

30 m x 19 m

Monitored area (tangential movement):

440 m² / 14 m mounting height

Mounting height min./max./recommended:

5 m / 16 m / 14 m

Degree / class of protection:

IP54 / Class III

Impact strength:

IK04

Temperature measurement range:

-5 °C to +45 °C

Ambient temperature:

-25 °C to +55 °C

Housing:

polycarbonate, UV-resistant

Number of light sensors:

1

Number of PIR sensors:

3

KNX TP 256:

Yes

Orientation light:

5 – 100 % / OFF / 1 min – 255 min

Night light:

5 – 100 %

Brightness set value:

5 – 2000 Lux
