MDT SCN-LED55.01 MDT LED Indicator 55

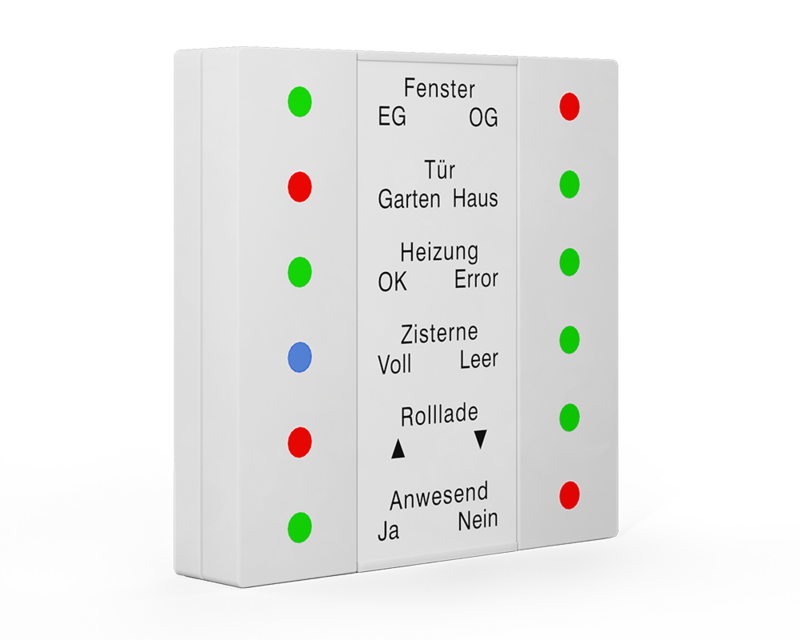

The MDT LED Indicator 55 with its 12 LEDs is ideal for visualising status messages of all kinds. Three states can be displayed (red, green, blue) for visualising the window status: closed / tilted / open, for example. Integrated logics enable, among other things, the combination of several window contacts.The MDT LED Indicator 55 fits into the switch lines of leading manufacturers, such as:GIRA Standard 55, E2, E22, Event, EspritBERKER S1, B3, B7JUNG A 500, A PLUS, A CREATION, AS 500, A550, A FLOWMERTEN 1M, M-Smart, M-Plan, M-Pure
GIRA Standard 55, E2, E22, Event, Esprit BERKER S1, B3, B7 JUNG A 500, A PLUS, A CREATION, AS 500, A550, A FLOW MERTEN 1M, M-Smart, M-Plan, M-Pure Fits 55 mm switch ranges 12 independently switchable RGB LEDs 3 objects for each LED 4 states for each LED possible (value=0, value=1, 2 priority objects, failure of an object) 8 logic blocks with 8 inputs each (8 objects) 4 modules to compare telegrams Brightness adjustable in 2 steps Day / night object Deactivation / reduction of the brightness Object presence / absence Drop out monitoring for objects with report function Object with report function (e.g. absence or window opened) Integrated bus coupling unit Production in Germany, certified according to ISO 9001 3 year warranty
