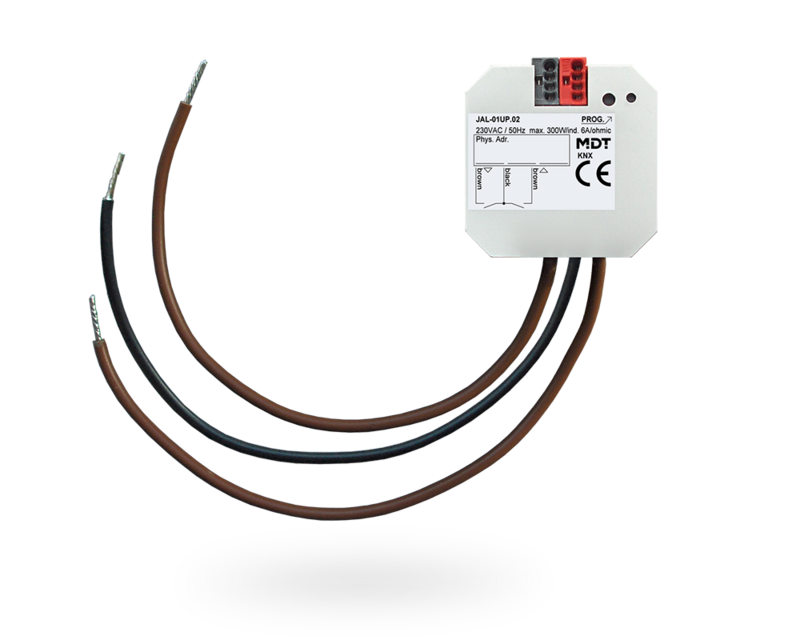

MDT JAL-01UP.02 Shutter Actuator JAL flush mounted

The flush-mounted version of the MDT Shutter Actuator JAL is suitable for decentralised installation on the blind or shutter motors. Existing conventional shutter push-buttons or window contacts can be connected directly to the floating binary inputs and evaluated (JAL-B1UP.02 only).
Practical ventilation function (window open / tilt) Automatic sun shading / slat adjustment with sun position calculation Travel-, pause at change of direction, step time adjustable Separate travel time for up and down adjustable Tip operation for accurate positioning Extended 1 Bit automatic positions and logic functions 1 Byte absolute positioning for shutter and blinds Alarm, central- and block functions Priority / forced operation with automatic release time To connect push-buttons or window / auxiliary contacts Integrated evaluation of the windows contacts Adjustable transmission behavior of the up / down objects (To the internal contacts or actuators on the KNX bus) Operation of blinds and shutters, 1 and 2 button operation Binary inputs usable as universal interface Dimensions (W x H x D): 41 mm x 41 mm x 22 mm Production in Germany, certified according to ISO 9001 3 year warranty
